Robust DC Motor
Robust DC Motor

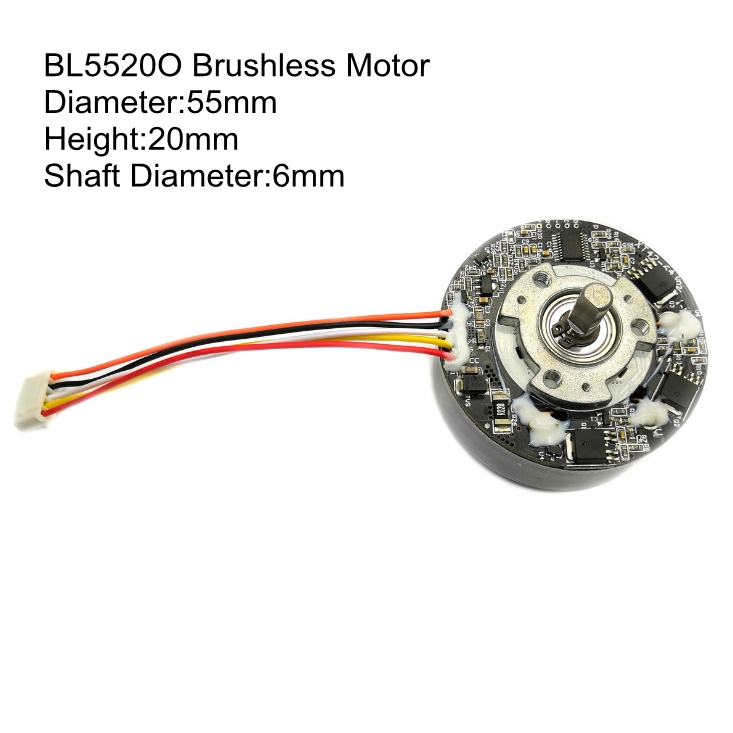

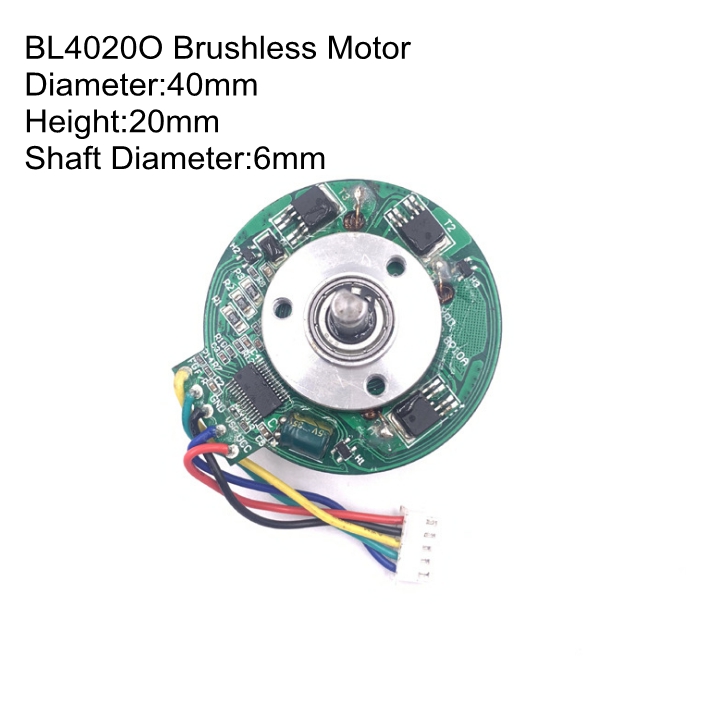

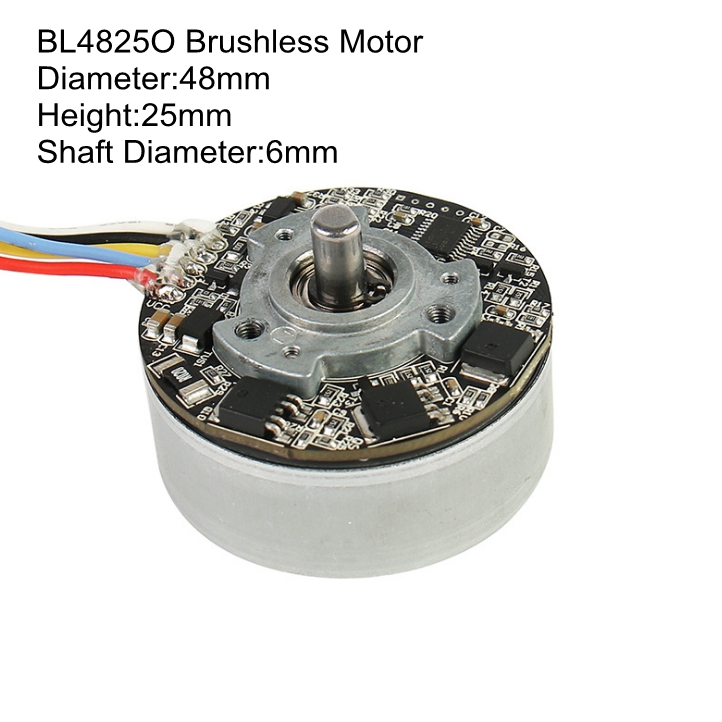

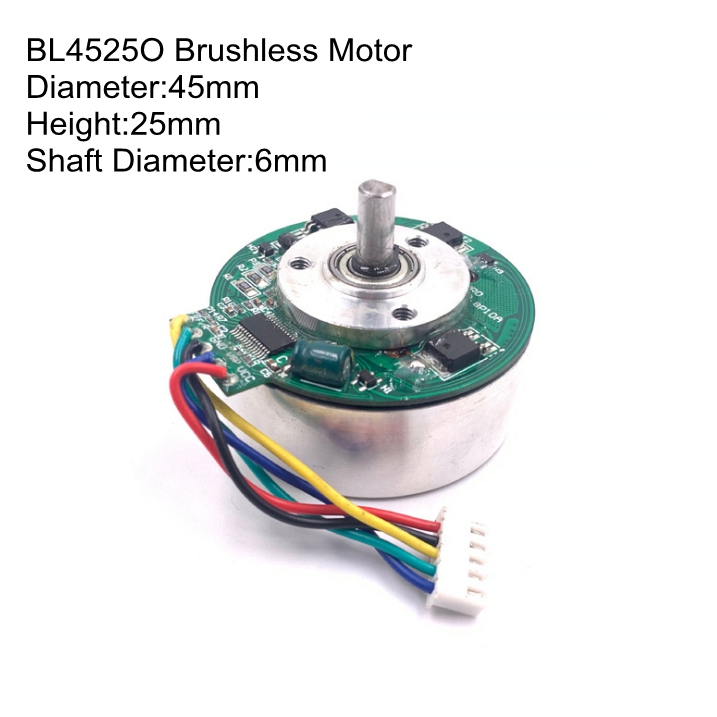

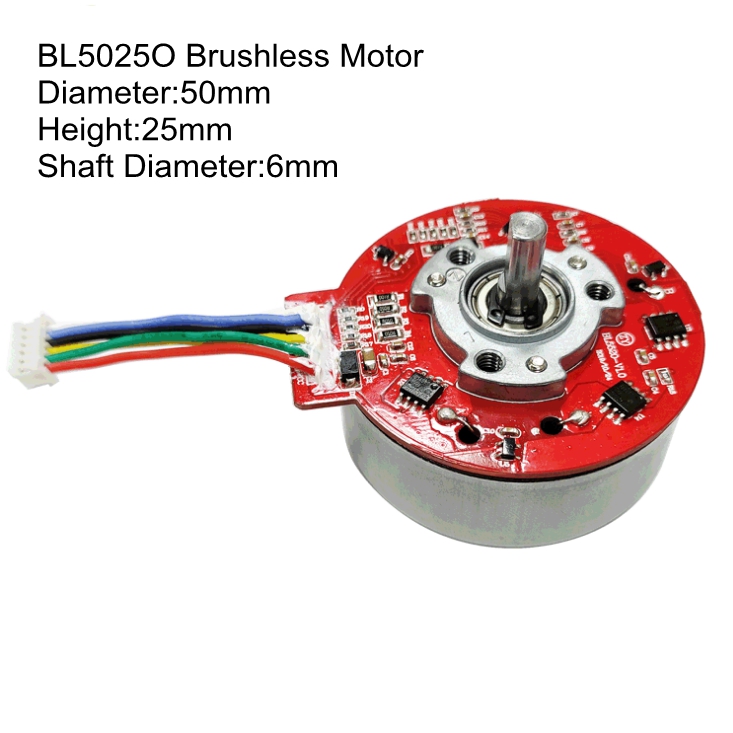

| Size | Diameter: 40mm, 45mm, 48mm, 50mm, 55mm |
|---|---|
| Voltage | 12V / 18V / 24V |
| Unload Speed | 2000-4000rpm |
| Rated Torque | ≤0.1NM |
| Max Torque | ≤1.0NM |
| Wattage | 5-80W |
| Shaft Diameter | 6mm |
| Application | Muscle Massager, Massager Gun, fascia massager, massager hammer |
| Characteristic | CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI |
Notice: Data in the typical specification sheet are for reference. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be customized to meet specific requirements.
This motor is primarily designed for high-performance applications such as Muscle Massagers, Massager Guns, fascia massagers, and massager hammers.
Yes, absolutely. Customizations can be made for voltage, rated torque, speed, current, power, gearbox ratio & dimensions, as well as shaft extension features and dimensions to meet your specific application requirements.
This motor features CW & CCW (clockwise/counter-clockwise) rotation, signal function options, locked rotor protection, stepless speed regulation, low noise operation, and low EMI.

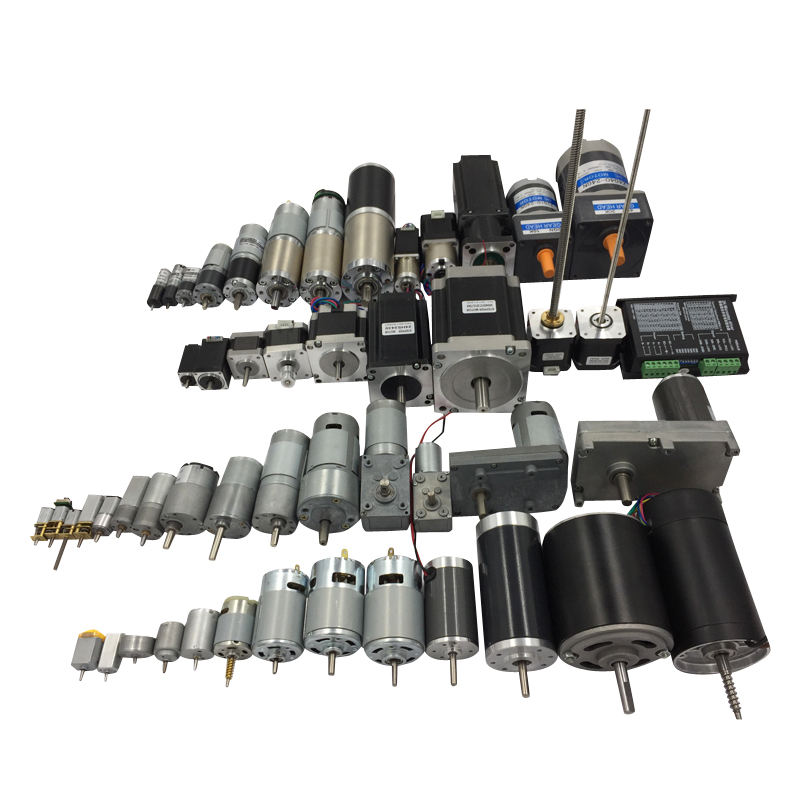

We manufacture a wide range of micro-motors including Brush Motors (Φ6-Φ60mm), Brushless Motors (Φ12-Φ42mm), Coreless Brush/Brushless Motors (Φ4-Φ45mm), Gear/Planetary Gear Motors (Φ4-Φ60mm), Stepper Motors (Φ6-Φ24mm), and Vibration Motors (Φ4-Φ45mm).
You should check the physical motor dimensions, operating voltage, speed (RPM), and torque/wattage specs. If standard specs do not match, you can submit an inquiry detailing your application's target performance requirements.
Our capabilities cover voltages from DC 1.5V to 220V (and AC options), speeds from 0.1 to 80,000 RPM, torque ranges from 0.01 to 500 Kg.cm, shaft lengths from 0.1 to 150mm, and gearbox ratios from 1:4 to 1:5000.
