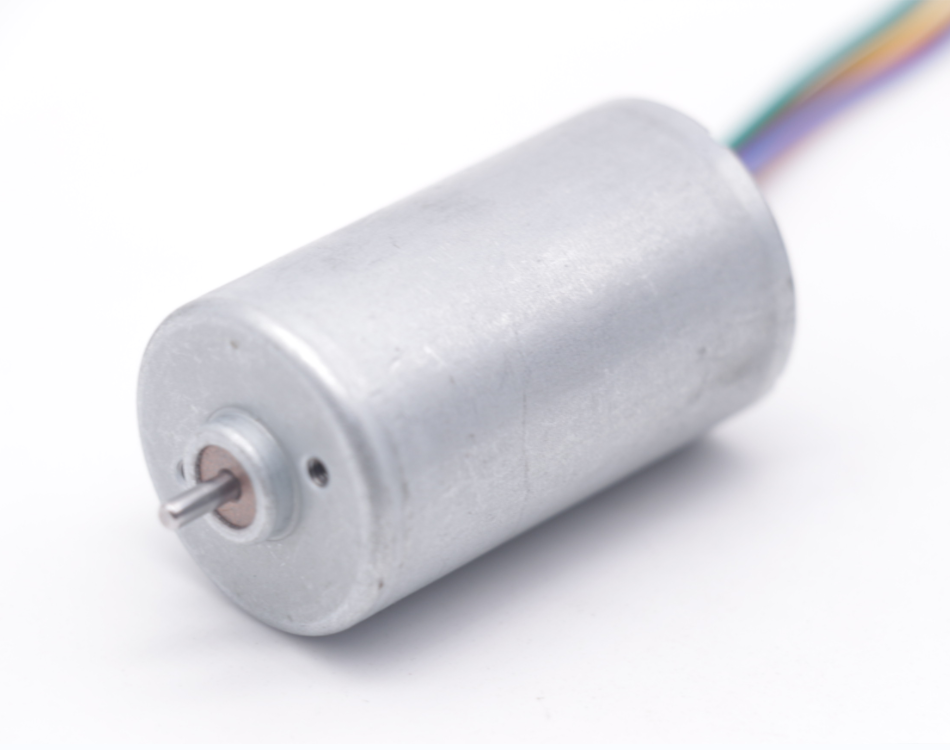

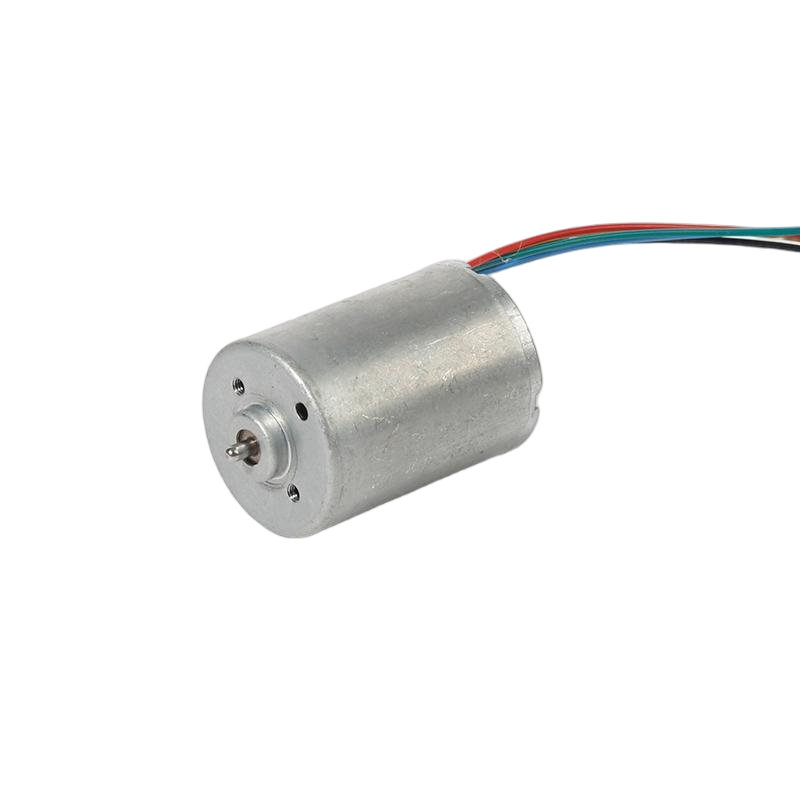

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
1 / 5
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

Send Inquiry

Product Description

Specification
Item 2838 Brushless Motor, 2847 Brushless Motor
Size Diameter 28mm, Length 38mm, 47mm
Voltage 3.7V~26V
Unload Speed 2000-12000rpm
Output torque ≤1100g.cm
Wattage ≤25watt
Driver Built-in design or Customized
Bearing Ball bearing or normal bearing
Lifetime 3000hours~20000hours
Function FG, CW/CCW, PWM
Protection Over current protection, Over heating protection
Feature long lifetime, low noise, high efficiency, stable and reliable
Application Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill
Product Description
🚀 Motor's voltage, speed, ratio, torque, shaft length can be fully customized

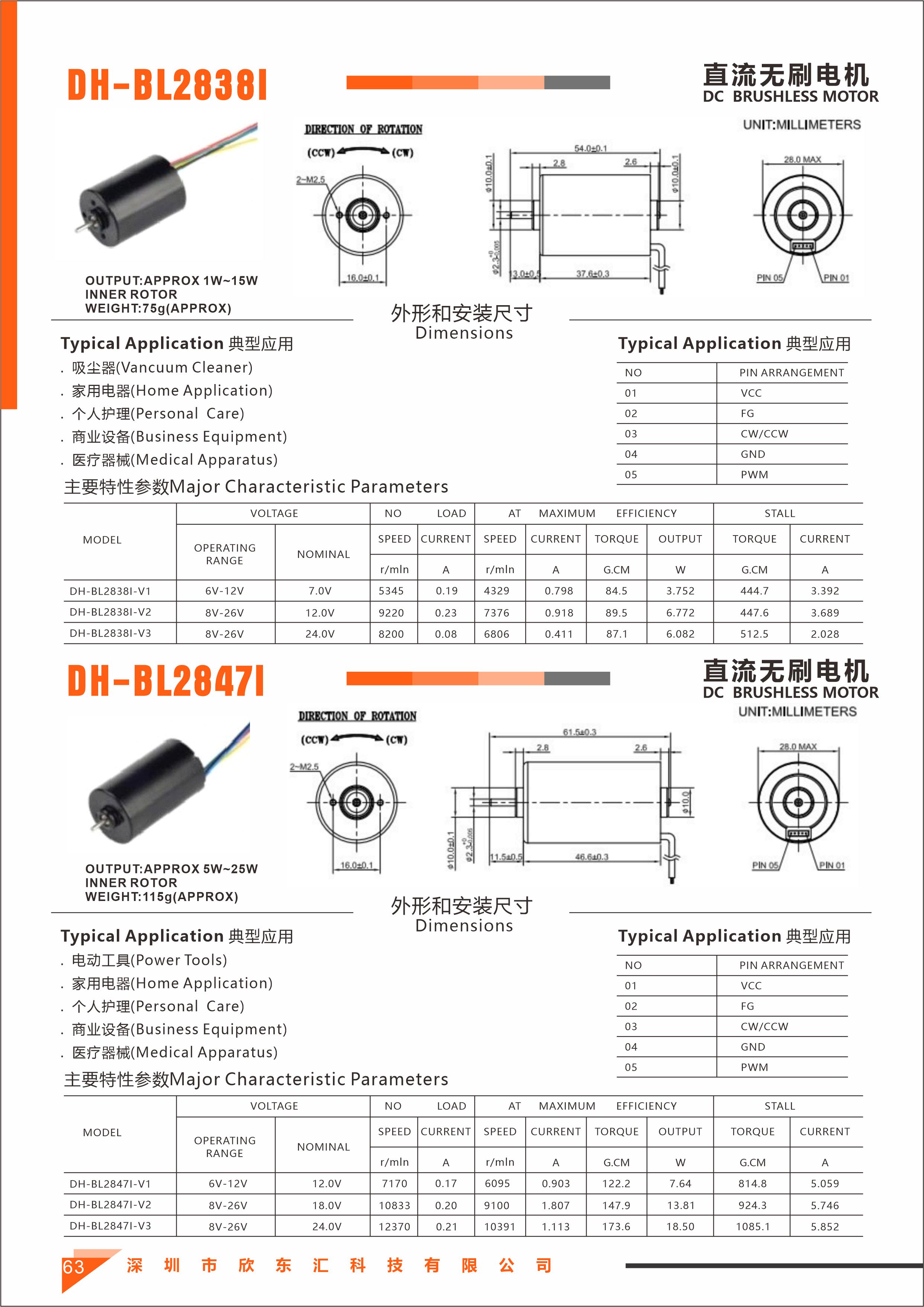

Brushless Motor Details

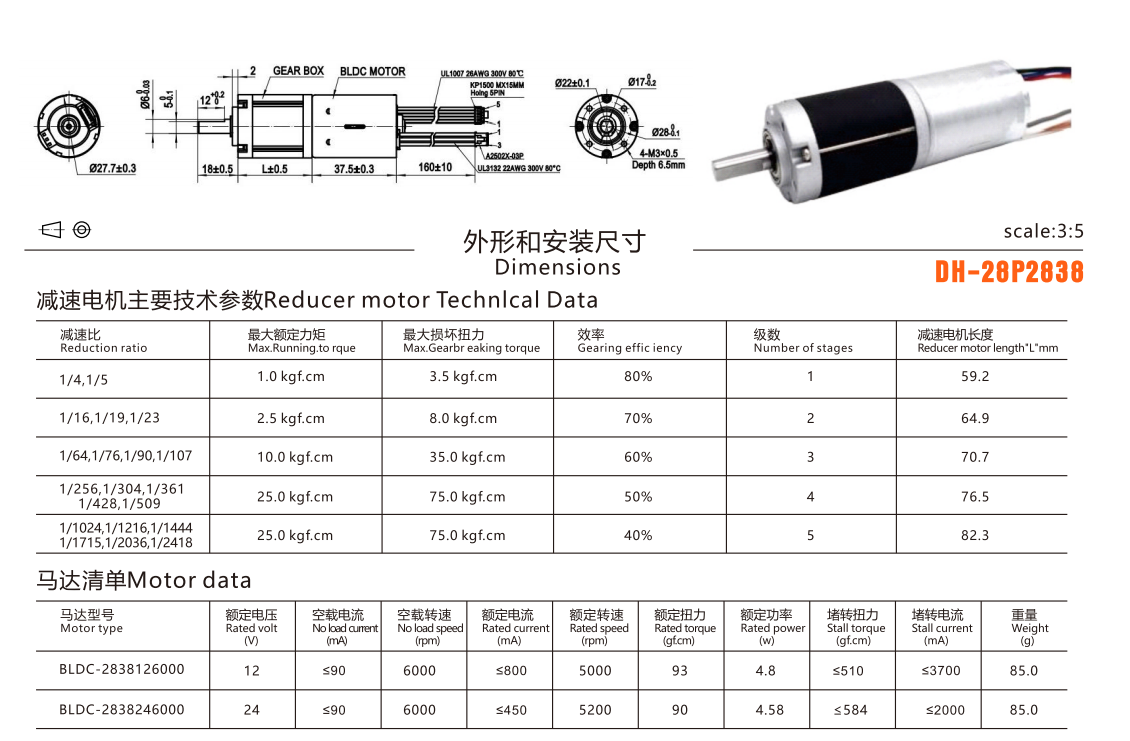

Technical Drawing
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

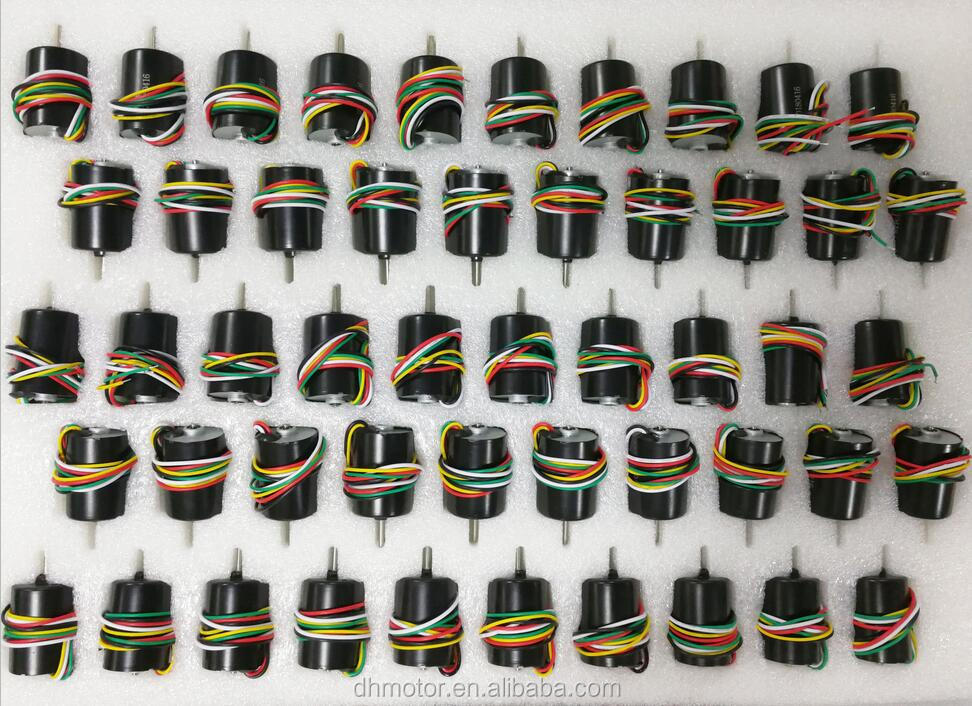

Packaging Process
Package Storage
Shipping Logistics
Final Delivery
Manufacturing Excellence
Frequently Asked Questions
Can the motor parameters be customized?
Yes, we provide full customization for voltage, speed, torque, shaft length, and gear ratios to meet your specific application requirements.
What is the typical lifespan of these brushless motors?
Depending on the usage and environment, our brushless motors offer a long service life ranging from 3,000 to 20,000 hours.
Do the motors include protective features?
Yes, our motors are designed with built-in safety features, including over-current protection and over-heating protection to ensure stable and reliable operation.
What are the primary applications for the 2838 and 2847 models?
These motors are ideal for high-performance applications such as fans, car vacuum cleaners, food processors, pumps, power tools, and various toy models.
What types of bearings are used in these motors?
We offer both high-precision ball bearings for enhanced durability and normal bearings depending on your cost and performance needs.
How is the product packaged for international shipping?
We use professional, environmentally friendly packaging designed to withstand transit and ensure that your goods arrive safely and efficiently.
