Robust DC Motor
Robust DC Motor

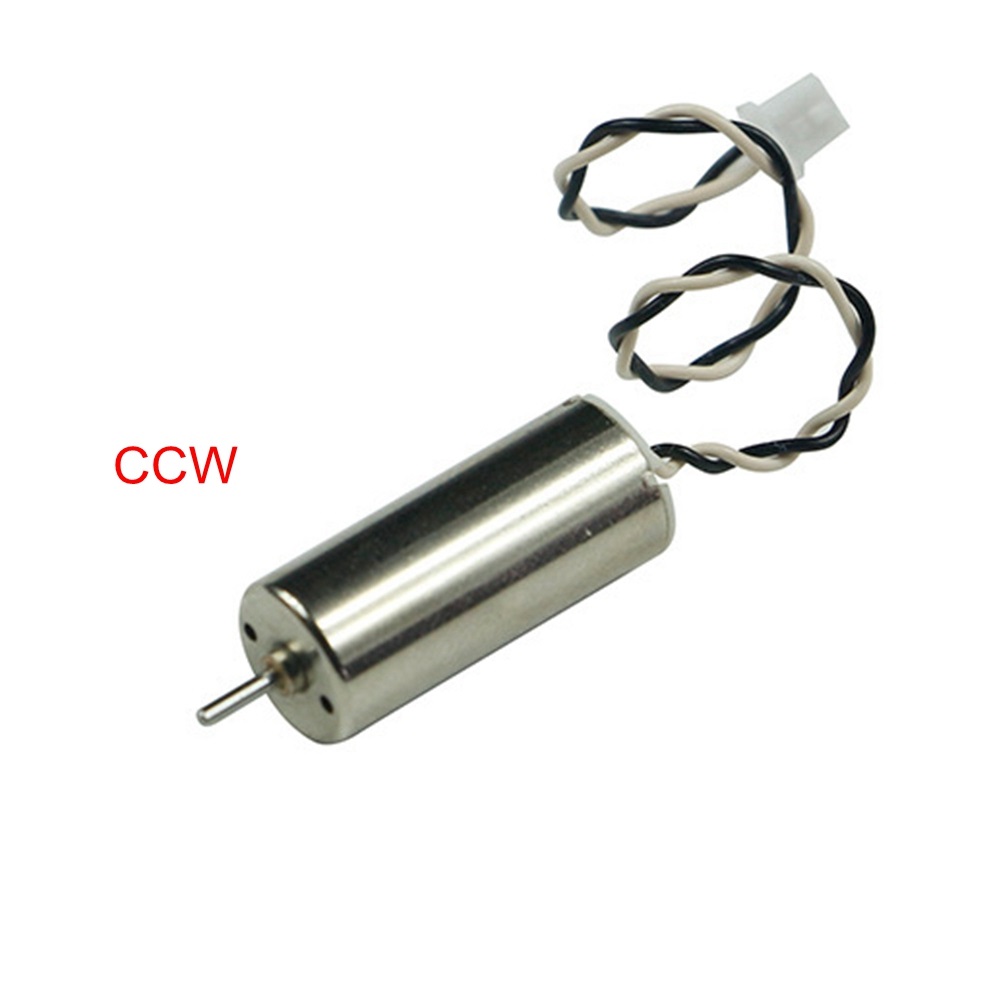

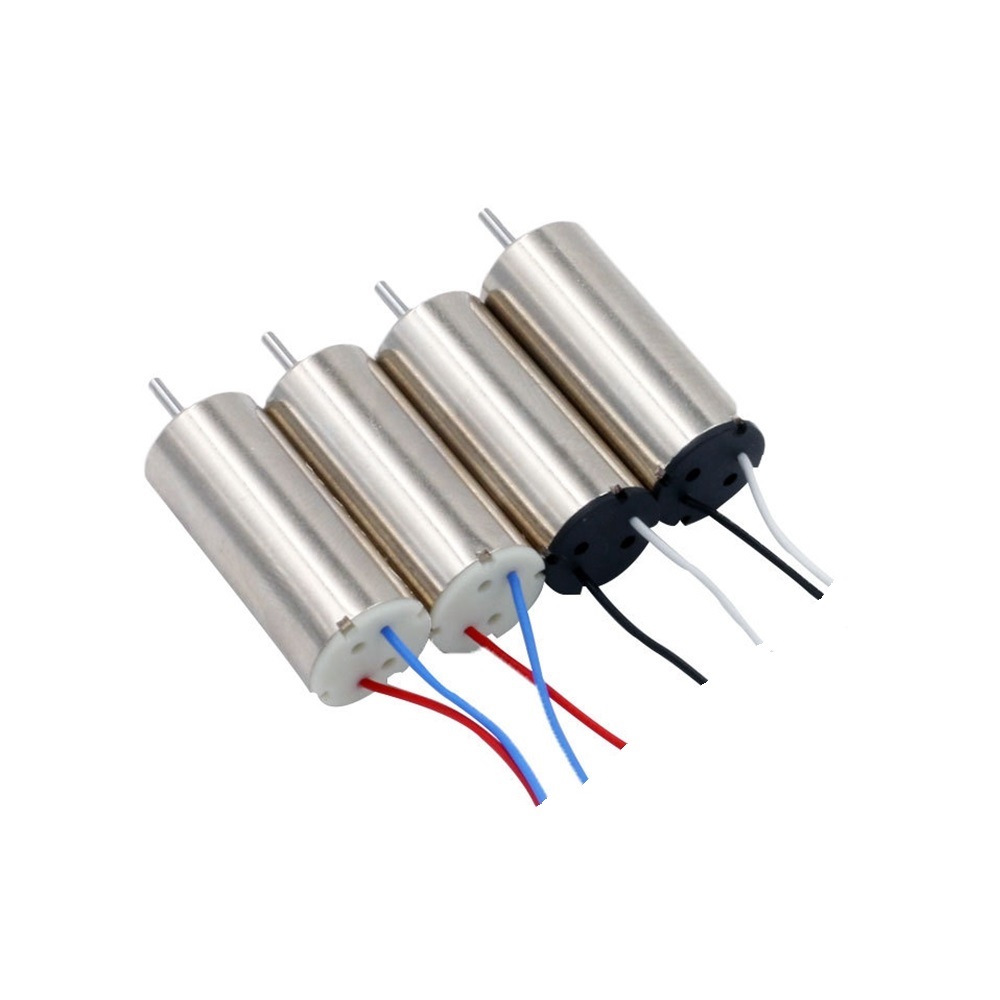

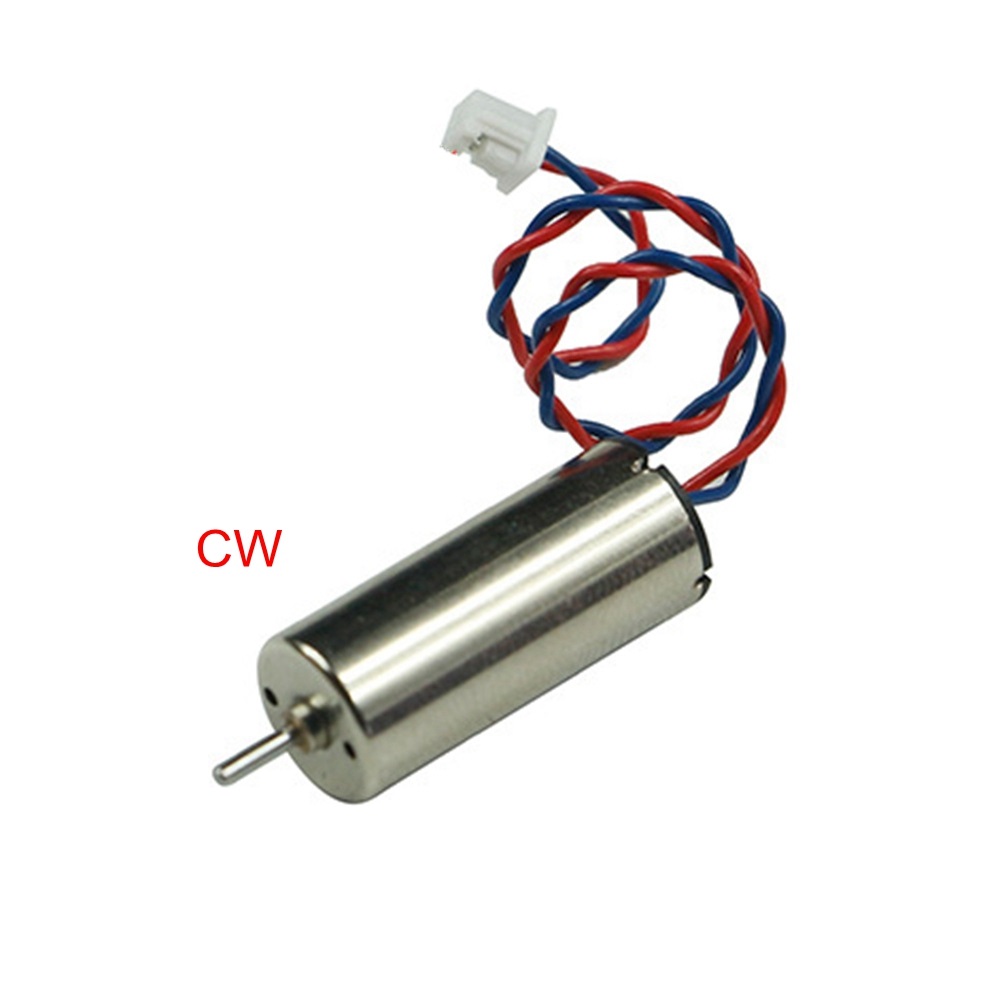

| Item | 8520 coreless mini drone dc motor |

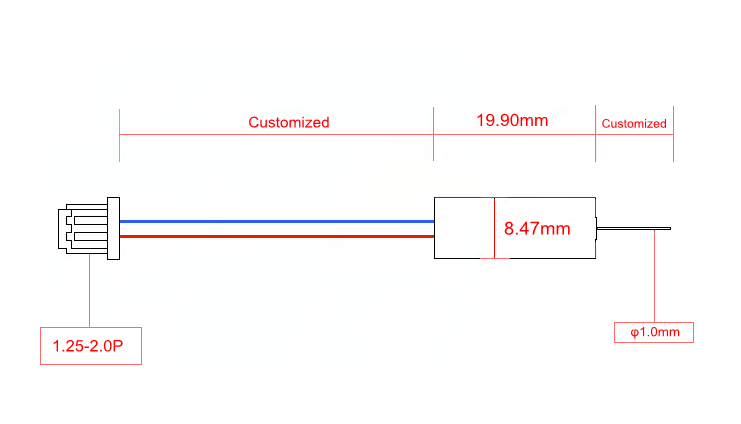

| Size | Diameter 8.5 mm, length 20mm |
| Voltage | DC 3V~9V |
| Speed | 15000-80000rpm Customized |
| Consume power | ≤5watt |
| Output Power | ≤3watt |
| Bearing | Oil bearing |
| Others | Wire and connector can be customized |

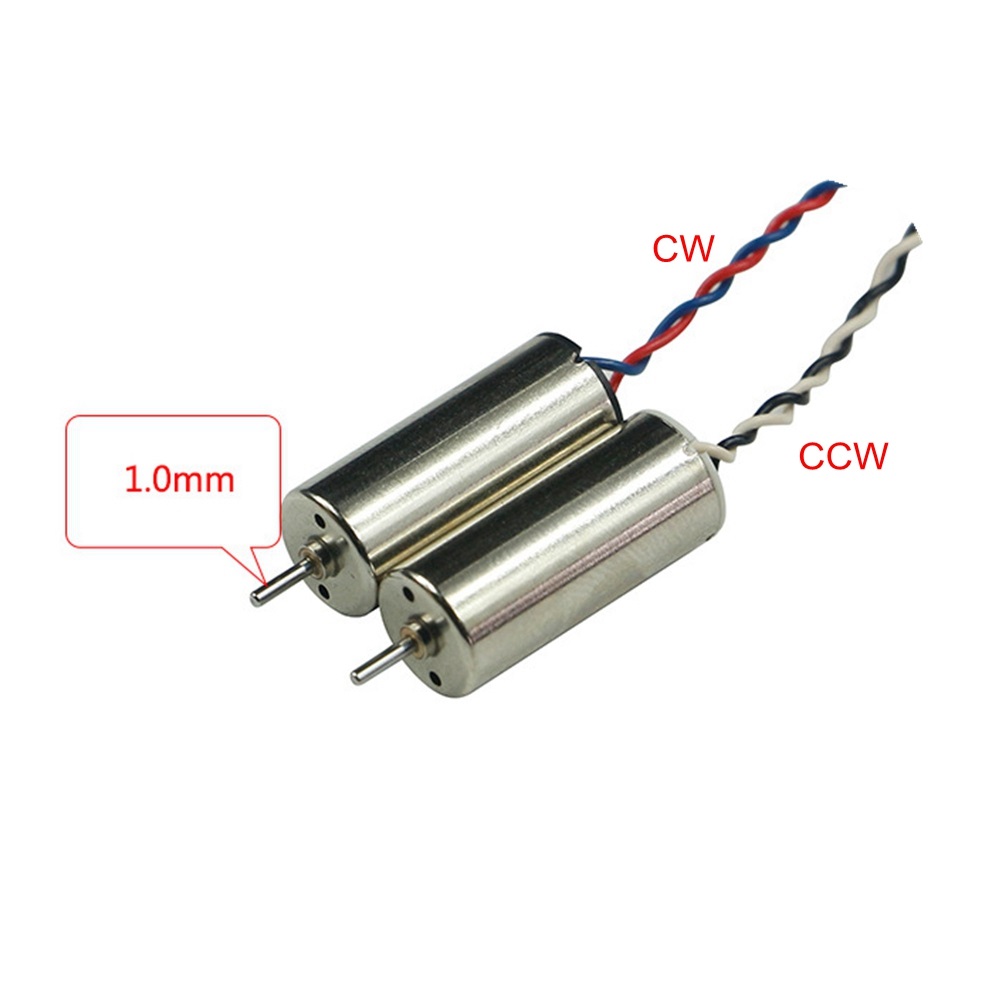

| Shaft | 0.8/1.0/1.2mm diameter with customized length |
| Application | Remote Control Toys, Aircraft, Mini Drone |
| Model | Size (mm) |
Voltage (V) |
Resistance (Ω) |
Unload Speed (rpm) |
Unload Current (mA) |
Load Torque (mNm) |
Load Speed (rpm) |
Load Current (mA) |
|---|---|---|---|---|---|---|---|---|
| DCL-8520-20 | Φ8.5*20 | 3 | 0.7 | 31000 | 70 | 1 | 22900 | 1100 |
| DCL-8520-34 | Φ8.5*20 | 3 | 1.6 | 20500 | 40 | 1 | 12500 | 760 |
| DCL-8520-42 | Φ8.5*20 | 3 | 0.48 | 41000 | 150 | 1 | 31800 | 1550 |
| DCL-8520-45 | Φ8.5*20 | 3 | 0.48 | 42500 | 170 | 1 | 33700 | 1680 |
| DCL-8520-17 | Φ8.5*20 | 3 | 0.55 | 36500 | 130 | 1 | 27500 | 1280 |
| DCL-8520-55 | Φ8.5*20 | 3.7 | 0.75 | 36000 | 75 | 1 | 26000 | 4400 |
| DCL-8520-65 | Φ8.5*20 | 3.7 | 0.65 | 42000 | 280 | 1 | 25000 | 3400 |
| DCL-8520-75 | Φ8.5*20 | 7.4 | 0.65 | 56000 | 460 | 1 | 49000 | 5600 |
