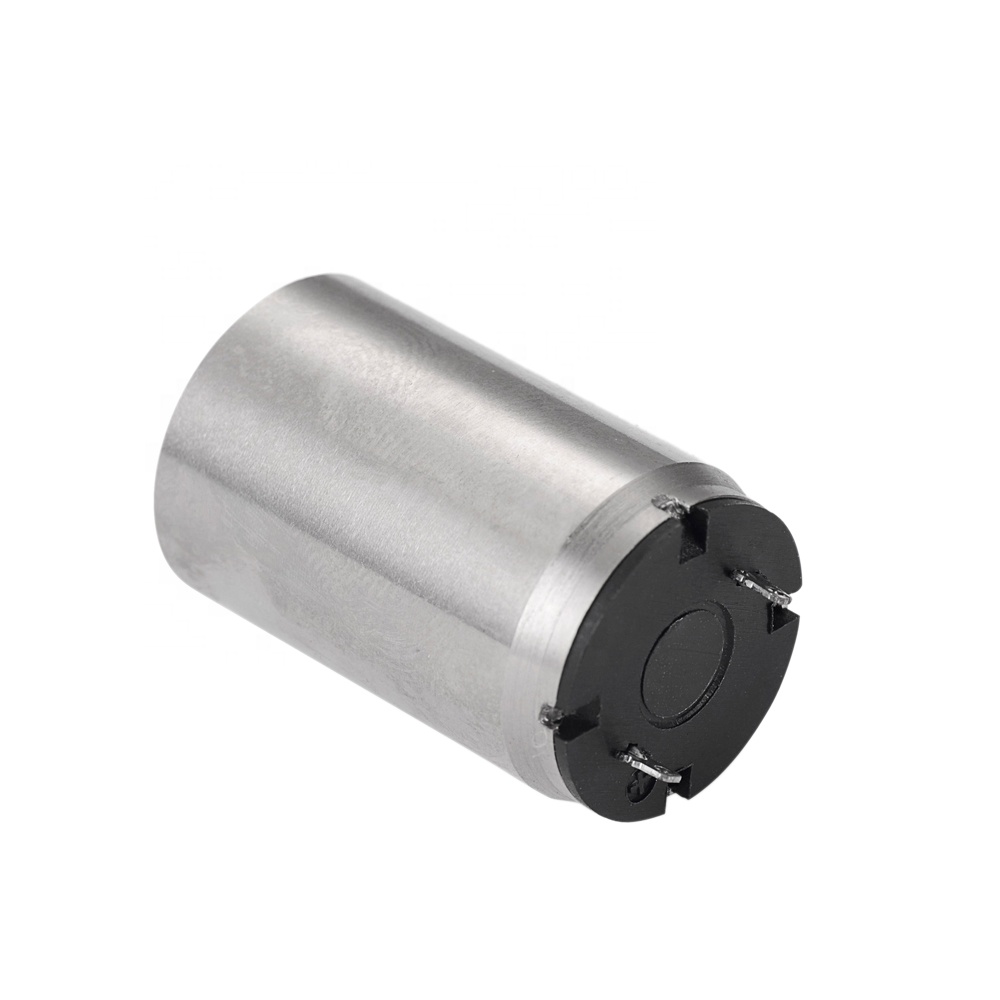

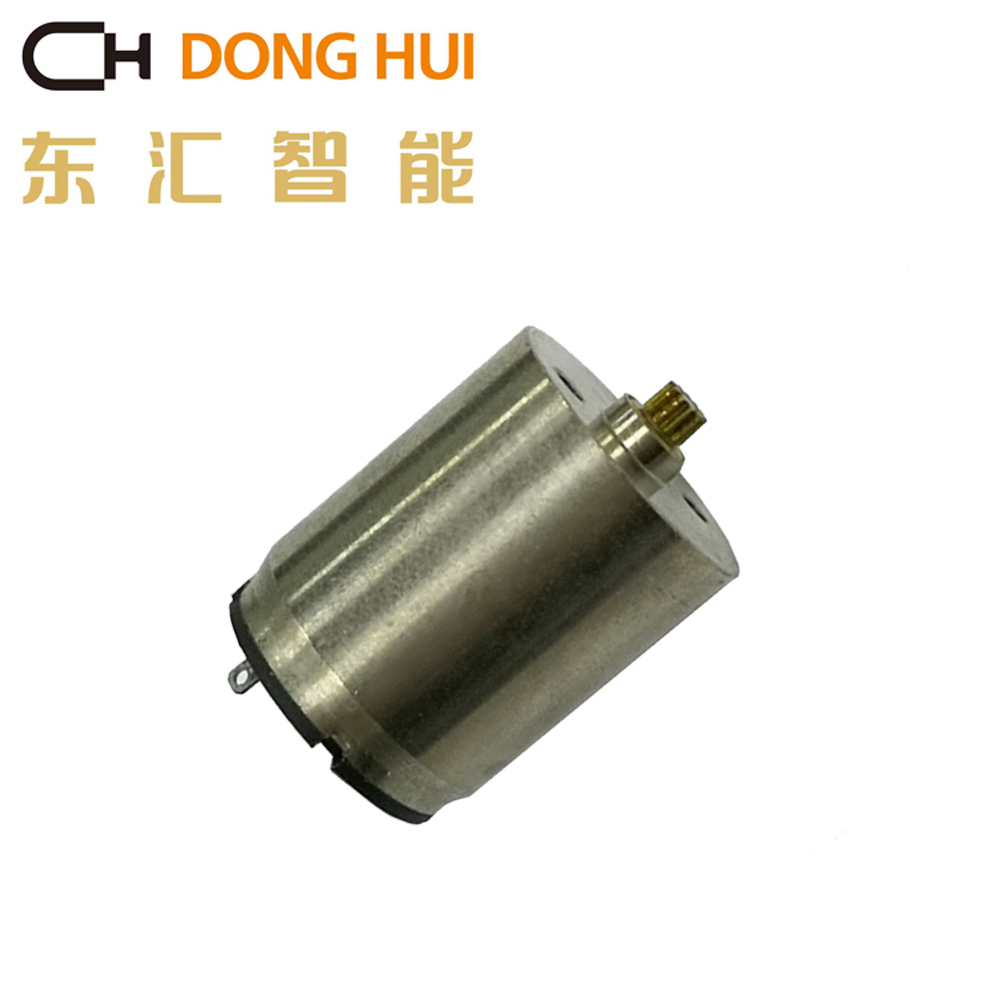

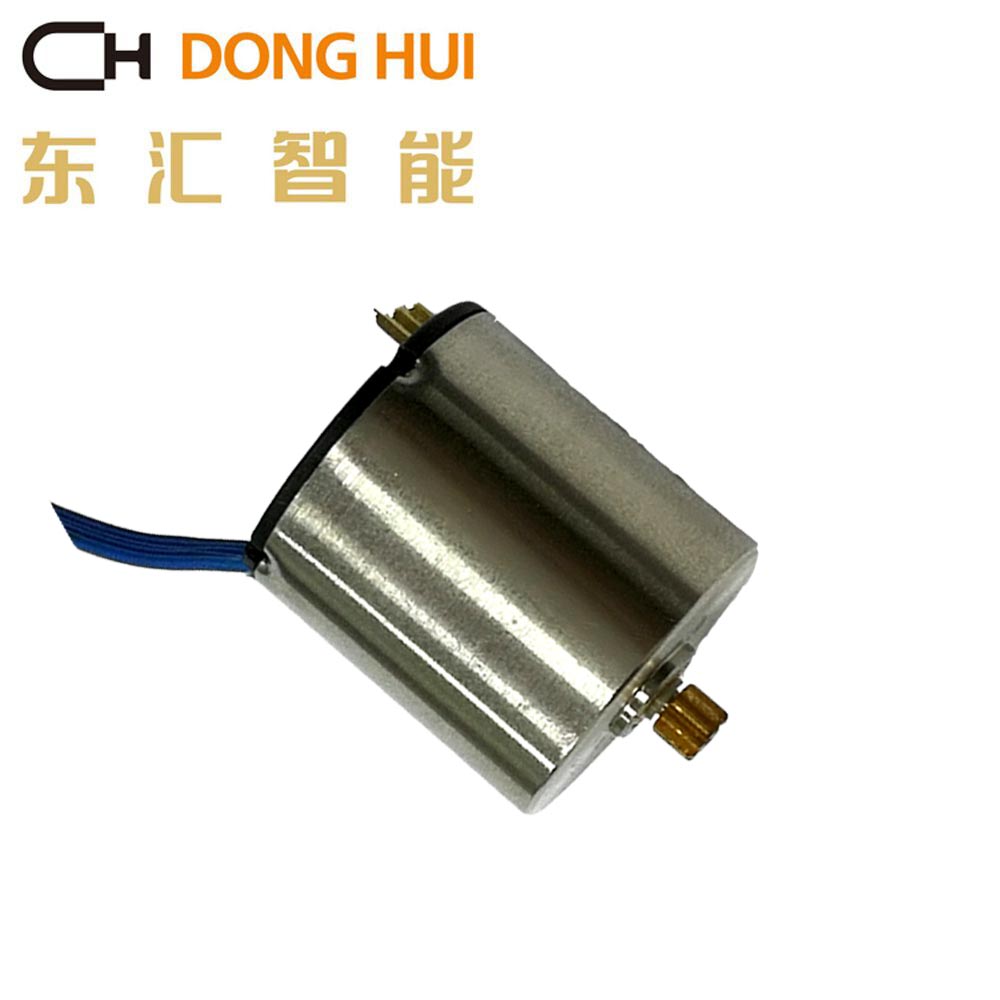

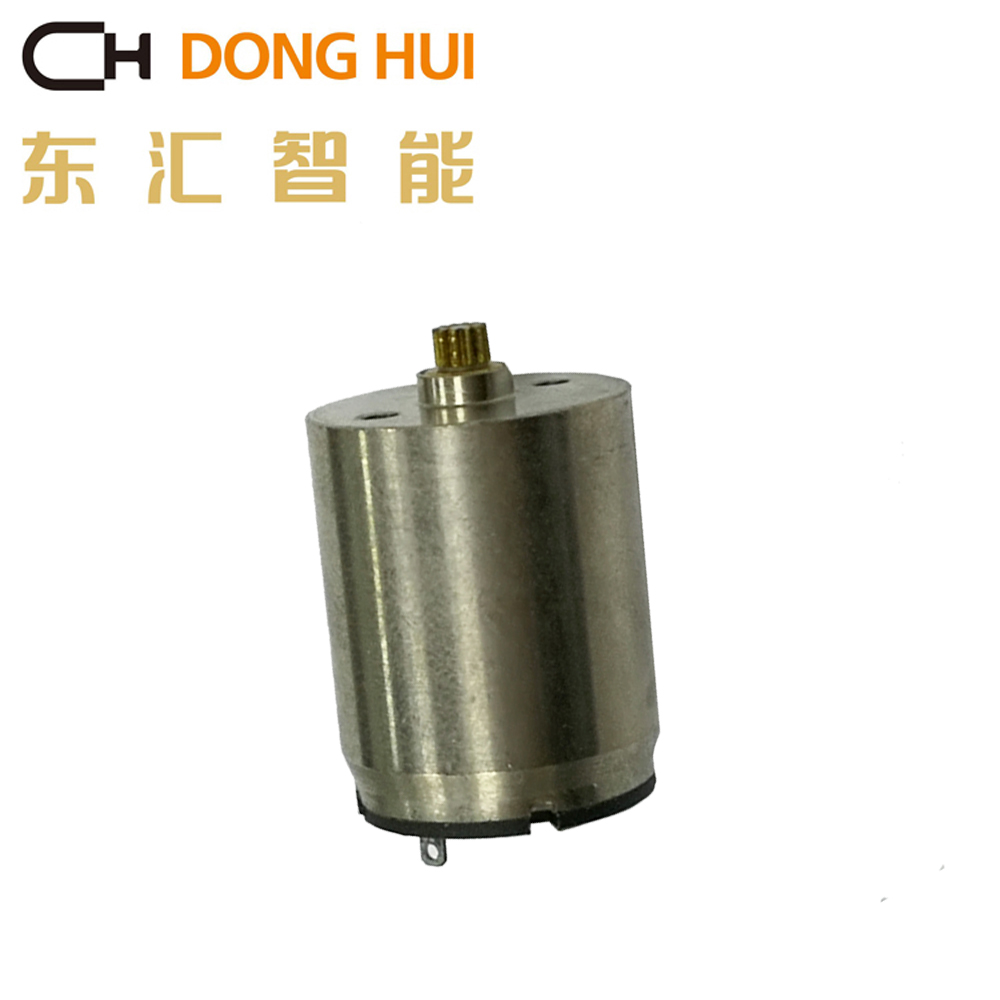

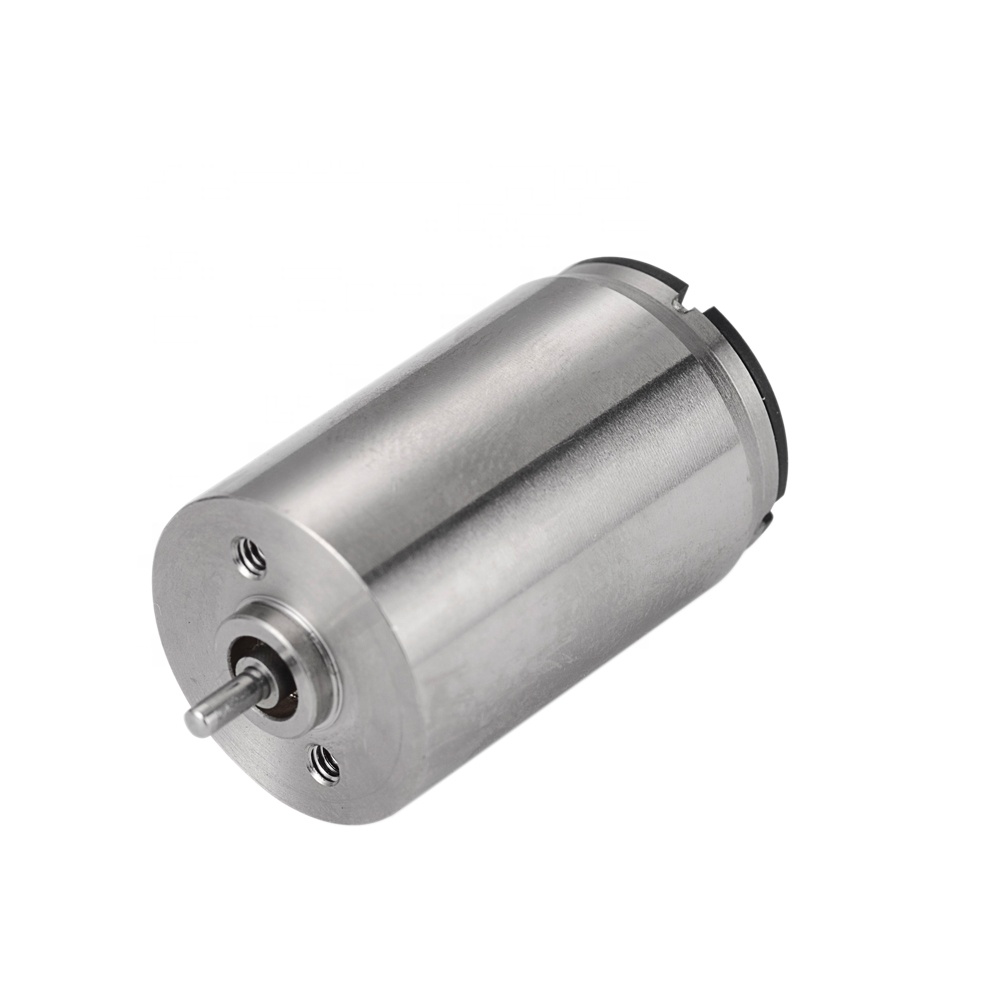

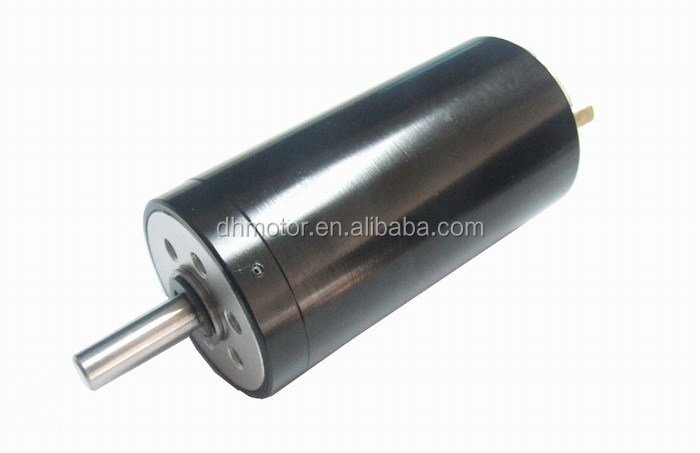

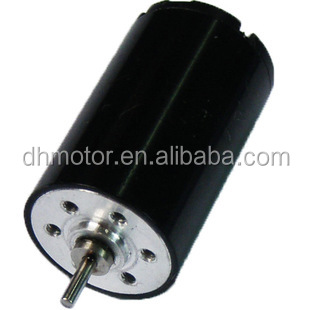

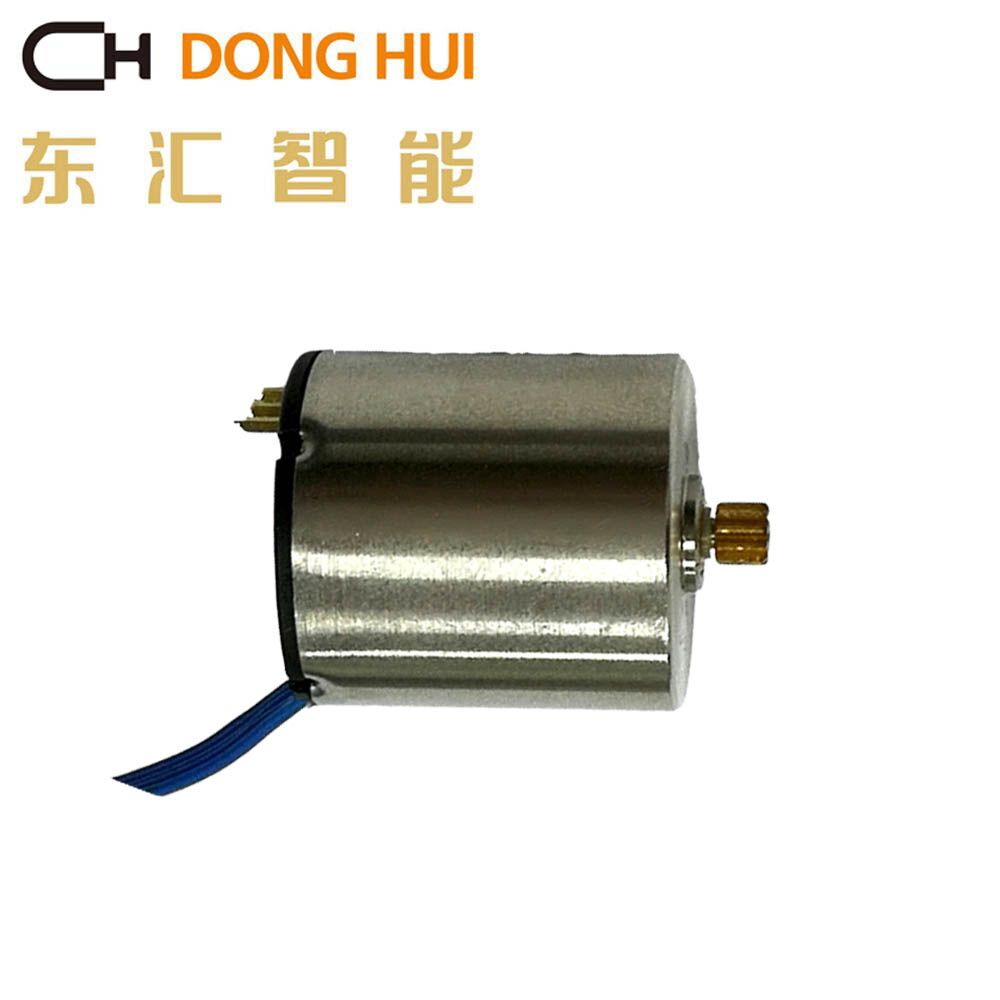

Robust DC Motor
Robust DC Motor

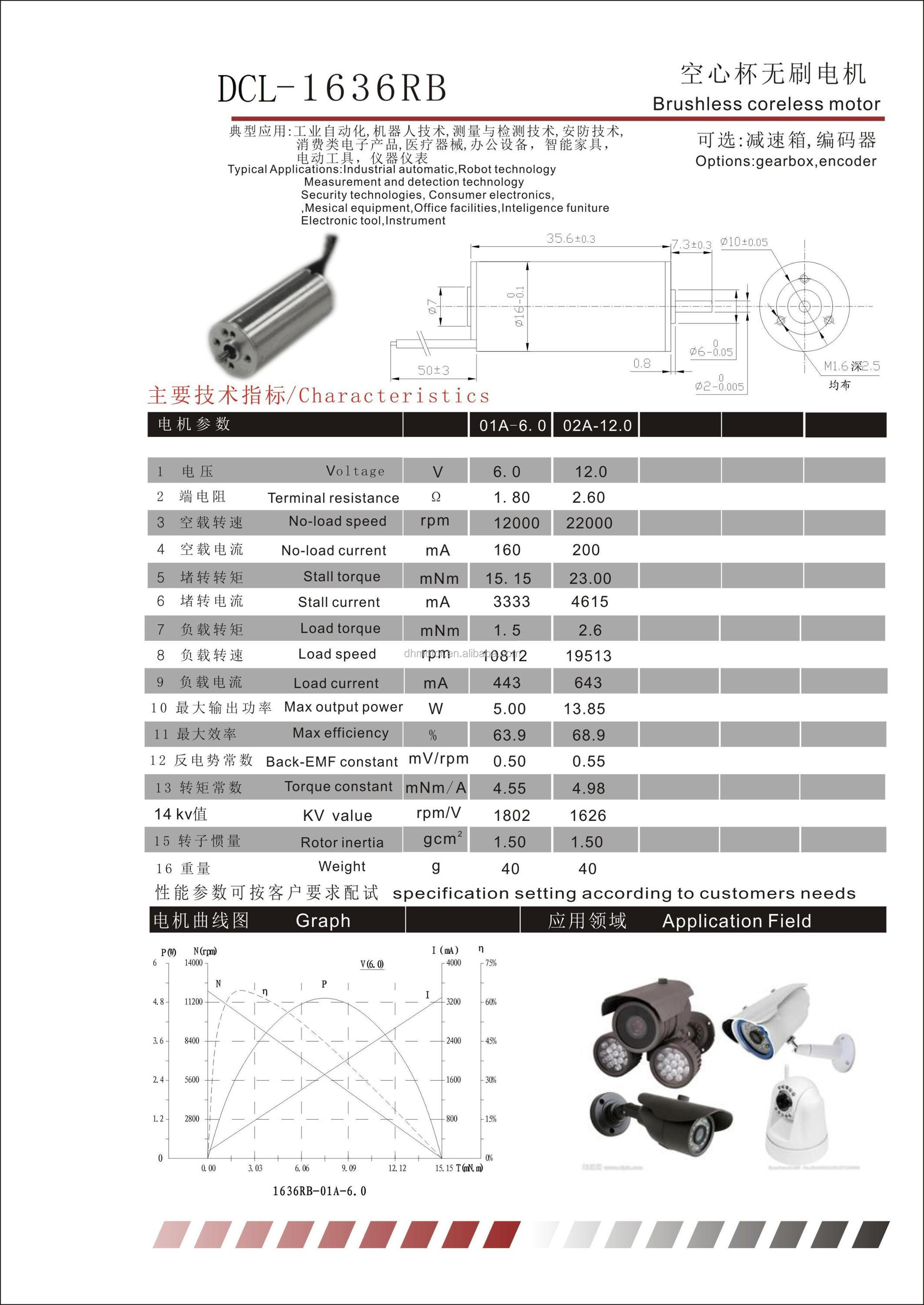

| Product name | Coreless motor |
| Usage | Fan, Home Appliance |
| Type | Micro Motor |
| Torque | 23mNm |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Drip-proof |
| Speed(RPM) | 22000rpm no load |
| Continuous Current(A) | 0.64A no load |
| Output Power | 13W |
| Voltage(V) | 12V |
| Efficiency | IE 1 |
| Rated load speed | 19500rpm |
| Rated load torque | 2.6 mNm |
| Rated load current | 0.64A |
| Starting torque | 23 mNm |
| Starting current | 4.6A |
| The length of the motor | 36±0.5mm |
| Shaft dia | 2.0mm |
| Shaft length | Can be customized |
| Application | Toys, medical equipment |
