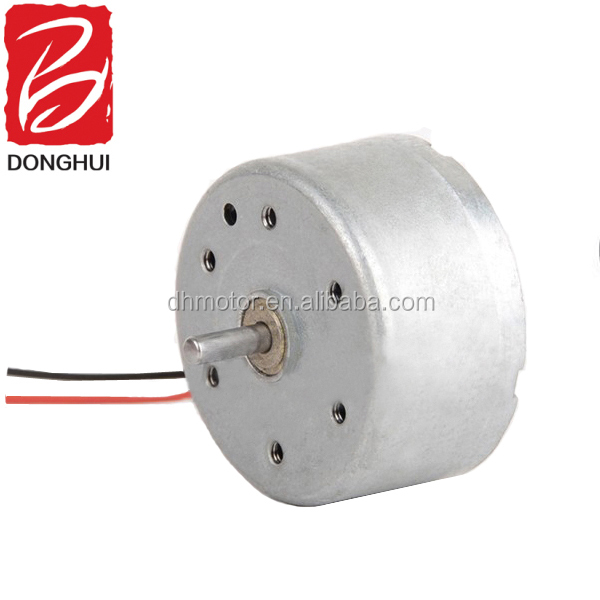

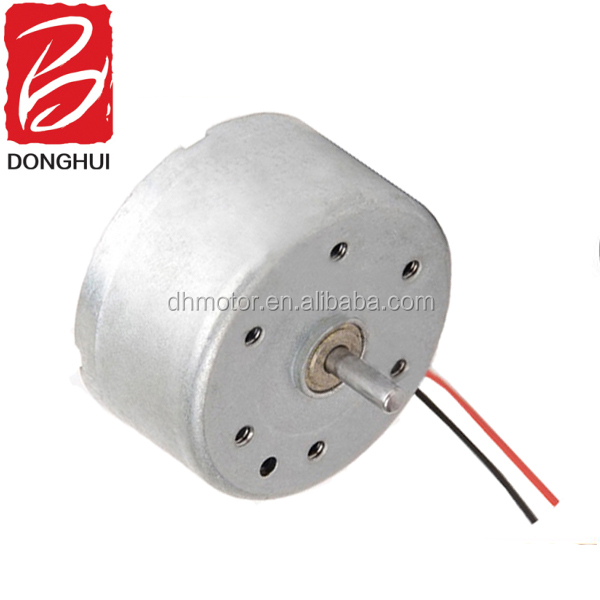

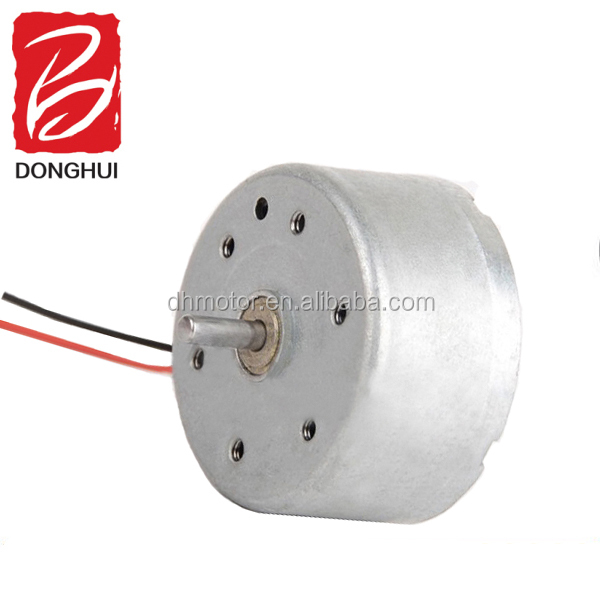

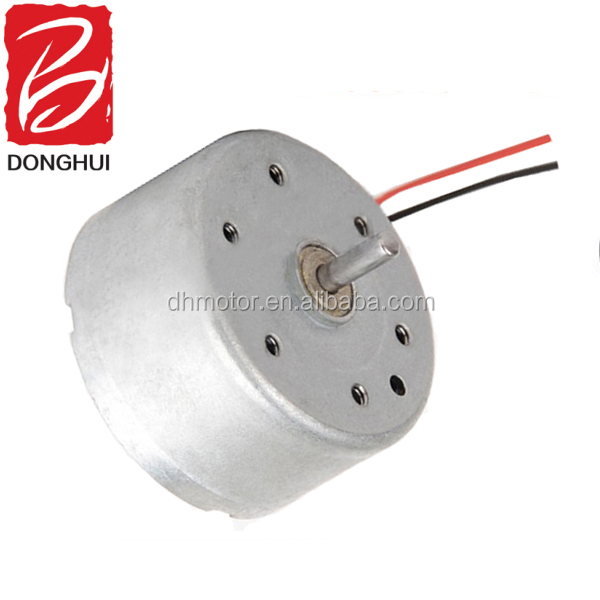

OEM Cheap price diameter 24mm low speed 3/4.5/6v 2500rpm micro dc brush motor DRF-300

Product Description

Product Description
Model : DRF-300, DRF-500
13v dc motor, R370
  • Rated Voltage: DC 13V
  • Speed No load: 1000-8000RPM
  • Torque At Max Efficiency: 10-25 g.cm
  • Brush Type: Precious Metal-brush motors
  • Dimensions: Diameter 24.4mm, length 30.8mm, shaft 2.0mm
  • Weight: 35g Approx
6 volt dc motor low rpm, R300
  • Rated Voltage: DC 6V
  • Speed No load: 3000RPM
  • Torque At Max Efficiency: 10-25 g.cm
  • Brush Type: Precious Metal-brush motors
  • Dimensions: Diameter 24.4mm, length 12.5mm, shaft 1.0mm
  • Weight: 20g Approx
10v dc motor, R280
  • Rated Voltage: DC 10V
  • Speed No load: 1000-8000RPM
  • Torque At Max Efficiency: 10-25 g.cm
  • Brush Type: Precious Metal-brush motors
  • Dimensions: Diameter 23.8mm, length 30.5mm, shaft 2.0mm
  • Weight: 42g Approx
Specifications
Rated Products
Company Profile
Founded in 2003, the enterprise is a private high-tech enterprise, and mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors. Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
OUR ADVANTAGES
  • 13 years experience to produce dc motor and dc gear motor.
  • Quality assurance with gears sourced from reliable military enterprises.
  • Strong Production and R & D Ability.
  • 10 Years Export Experience in Germany, Japan and USA.
Frequently Asked Questions
Q1 What's your main products?
Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q2 What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipments, payment equipments, vending machines, power door lock, electric door lock.
Q3 Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
Q4 What kind of data do I need to provide if I want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
Q5 What if I don't know the above data?
Please contact our sales representative to handle, we'll answer your questions patiently.
