Product Description
Place of Origin:
Guangdong China (Mainland)
Model Number:
FC-280PC-22125
Usage:
Car, Scanner
Certification:
ROHS
Type:
Micro Motor
Torque:
48G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
12500rpm (At No load)
Continuous Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
Bearing:
TBD
End Cap:
Plastic End Cap
Stator and Slots:
2-Pole stator / 3-Slot armature
Brush Type:
Carbon brushes
Bearing Type:
Oil-impregnated bearing
Rotation:
Reversible
Product Specifications & Images
Specifications:

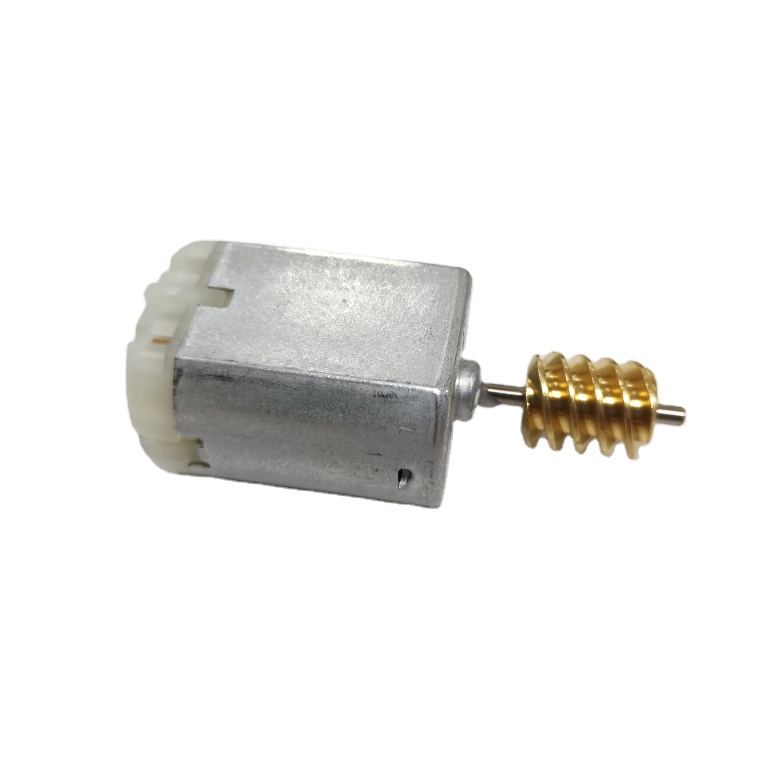

12v dc car central lock motor, 13v 12v car door lock actuator motor for car
- 12V car lock actuator motor
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
- Application: Door lock Actuator, Automotive Product
Product Presentation

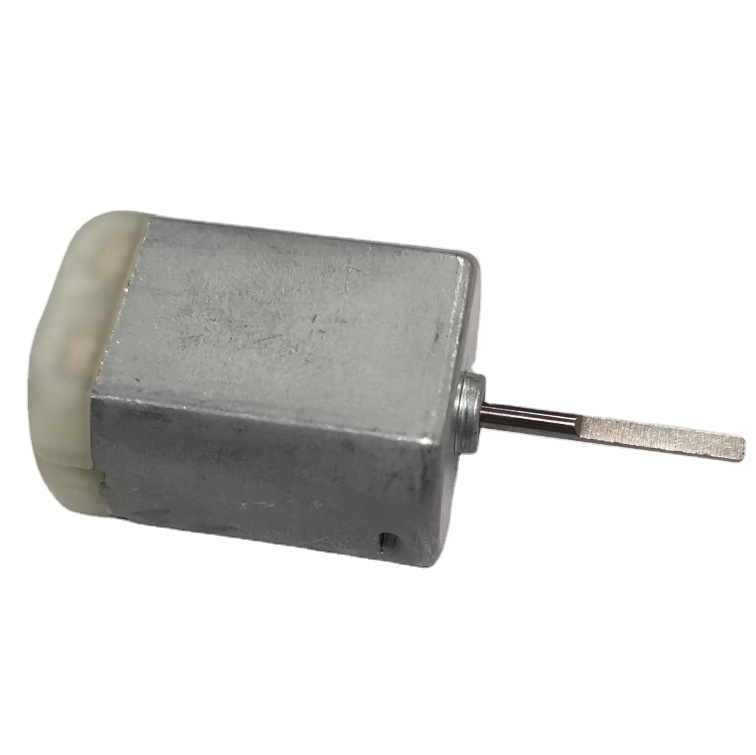

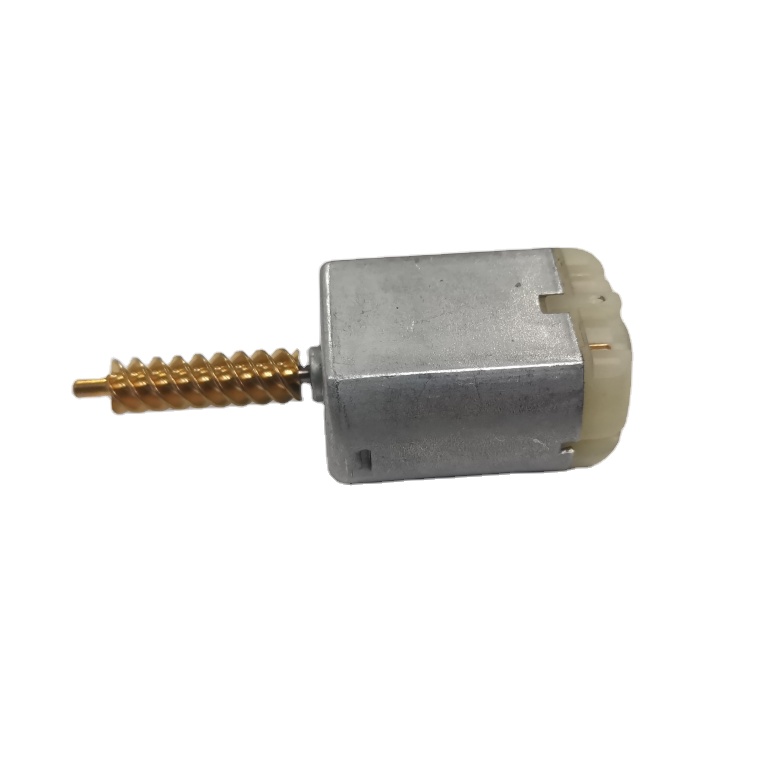

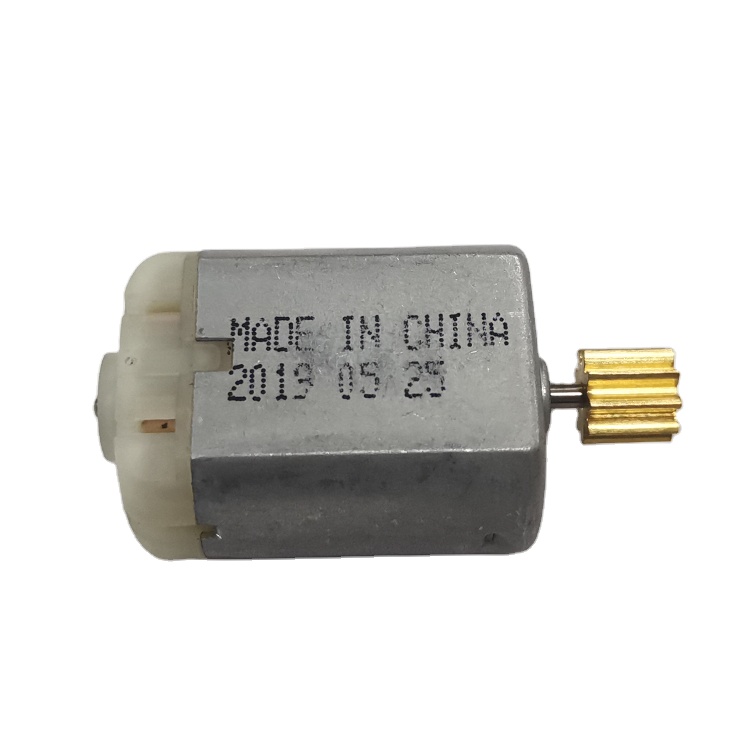

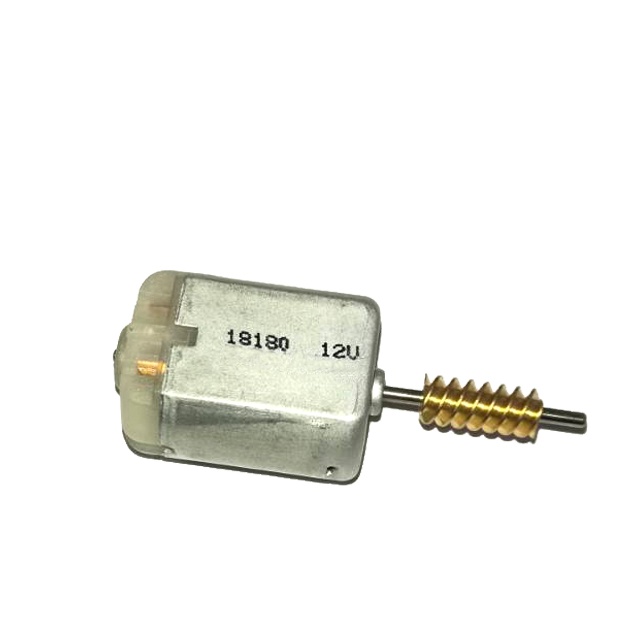

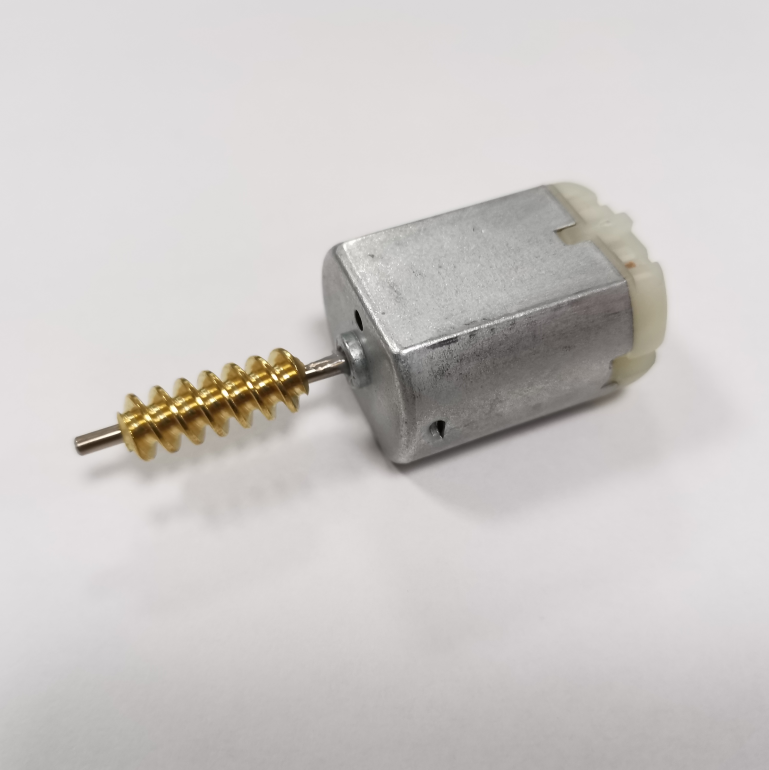

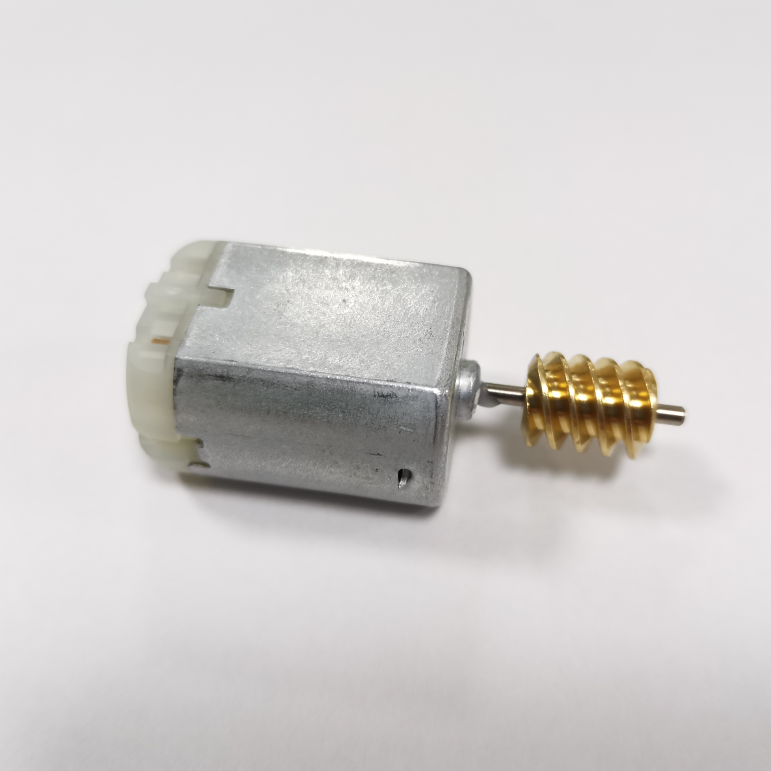

Detailed views of the 12v car lock actuator motor:

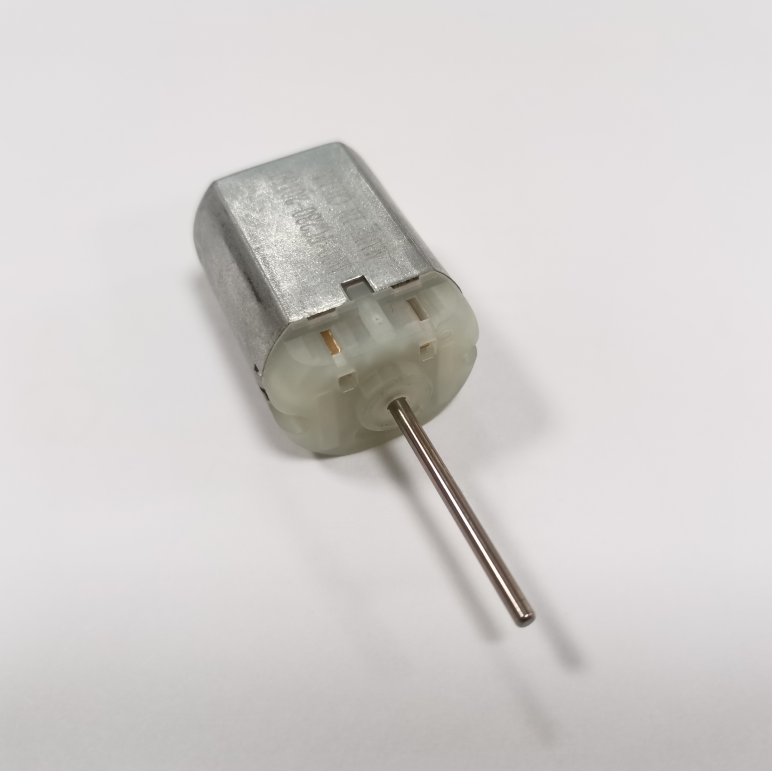

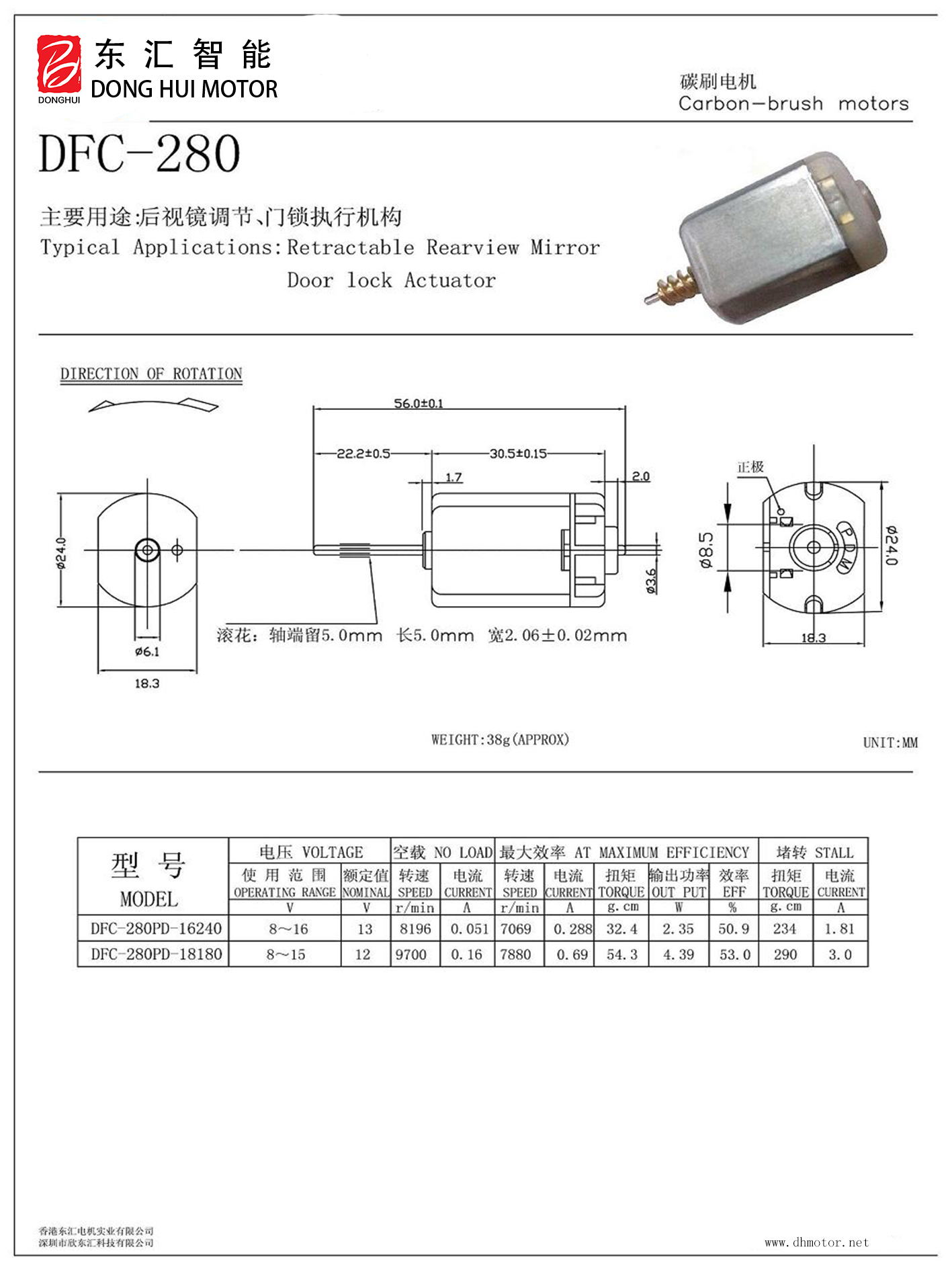

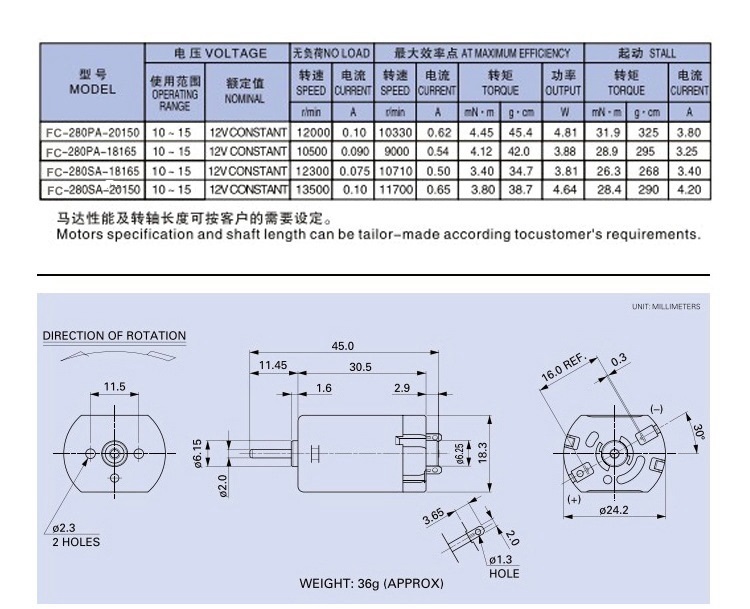

Outline Drawing & Parameters (FC-280PC-22125)

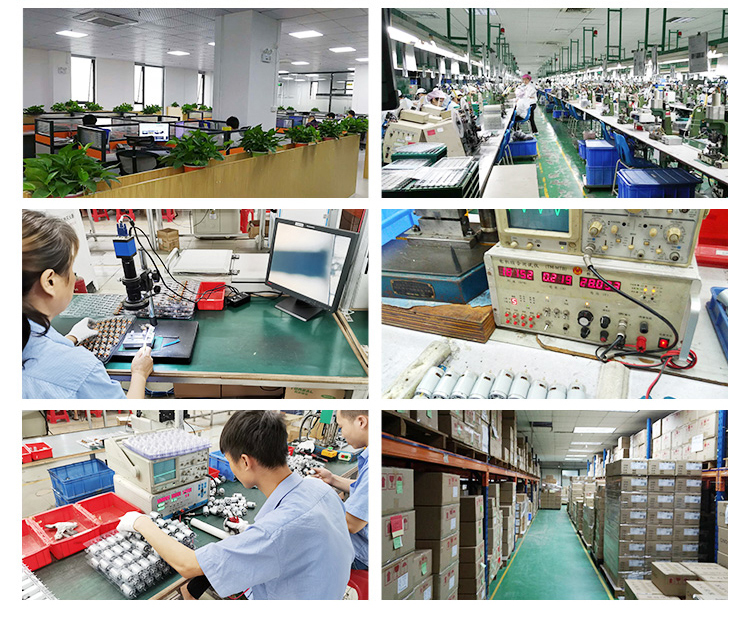

Manufacturing Capabilities
Established in 2003, the manufacturer has been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.
Production Ranges:
- Main Products: Dia4~100mm DC Micro Motor, Auto DC motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
- Size Range: Diameter 4-100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V, etc.)
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque: 1g.cm - 30kg.cm
- Key Applications: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive systems, Audio & Visual equipment, etc.
Frequently Asked Questions
What are the primary applications for the FC-280PC-22125 micro motor?
This micro DC motor is widely used in automotive lock actuators, central locking systems, scanners, consumer electronics, and electric automotive parts requiring a compact, high-efficiency motor.
What are the key technical specifications of this motor?
The motor operates on a nominal voltage of 12V DC, offering a no-load speed of 12,500 RPM, output power ranging from 1W to 6W, and a torque rating of 48G.CM.
Does this micro motor support bidirectional rotation?
Yes, this motor has a reversible rotation design, allowing it to turn in both clockwise and counter-clockwise directions depending on the electrical polarity setup.
What certifications does the product hold?
The FC-280PC-22125 micro motor is fully ROHS compliant, constructed using a permanent magnet configuration, carbon brushes, and a protective closed design.
What are the standard packaging and delivery terms?
The standard packaging is 500 units per carton (carton dimension: 39x29x46 cm). Delivery is typically scheduled within 30 days from order confirmation.
