Robust DC Motor
Robust DC Motor
| Place of Origin: | Guangdong China (Mainland) | Model Number: | FC-280SC-20150 |
| Usage: | Car, Scanner | Certification: | ROHS |
| Type: | Micro Motor | Torque: | 335G.CM AT STALL |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Closed | Speed(RPM): | 11800rpm At No load Speed |
| Continuous Current(A): | 0.1-5A | Output Power: | 4.5W |
| Voltage(V): | 12V | Efficiency: | IE 1 |
| Bearing: | TBD | End Cap: | Plastic End Cap |
| Stator and Slots: | 2-Pole stator and 3-Slot armature | Brush Type: | Carbon brushes |
| Bearing Type: | Oil-impregnated bearing | Rotation: | Reversible |
| Packaging Details: | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail: | Within 30 days |

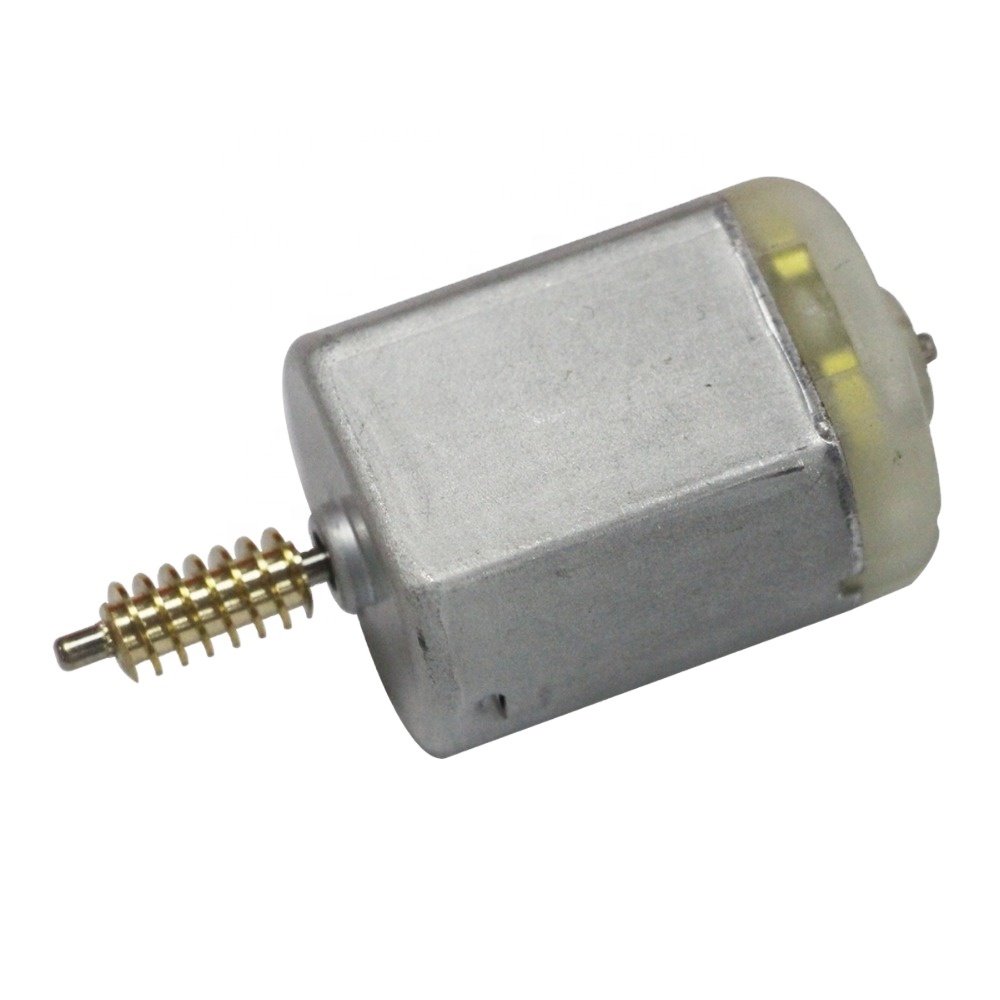

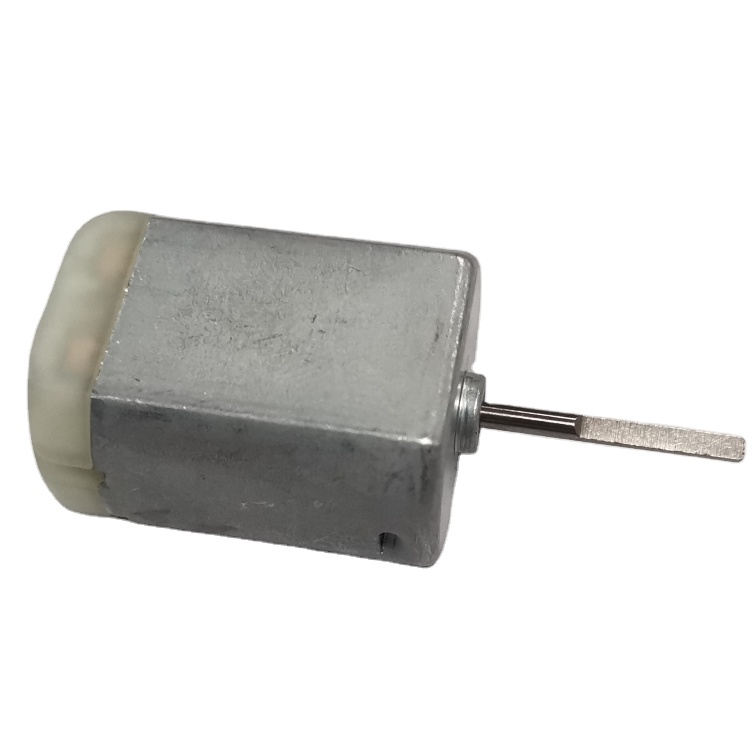

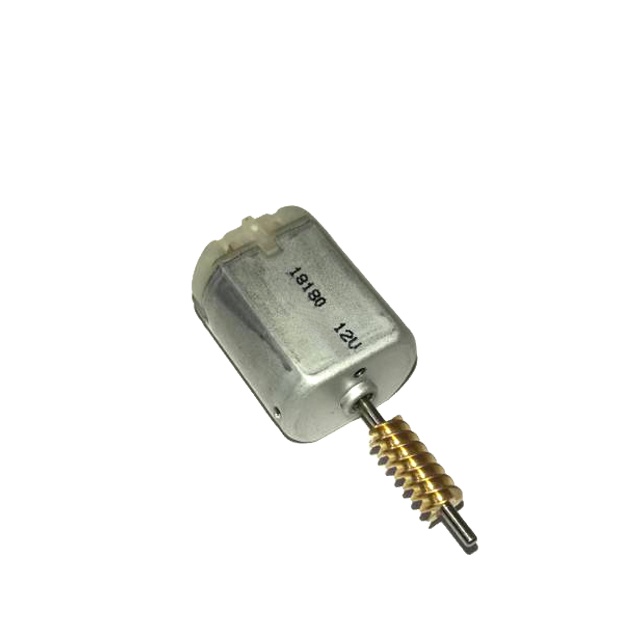

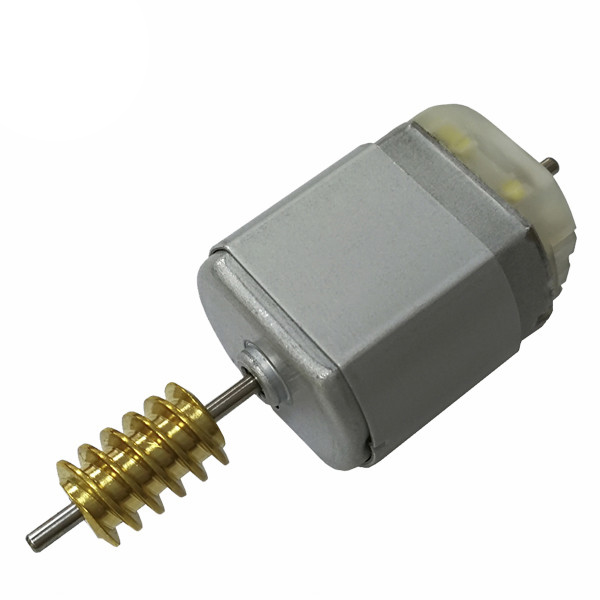

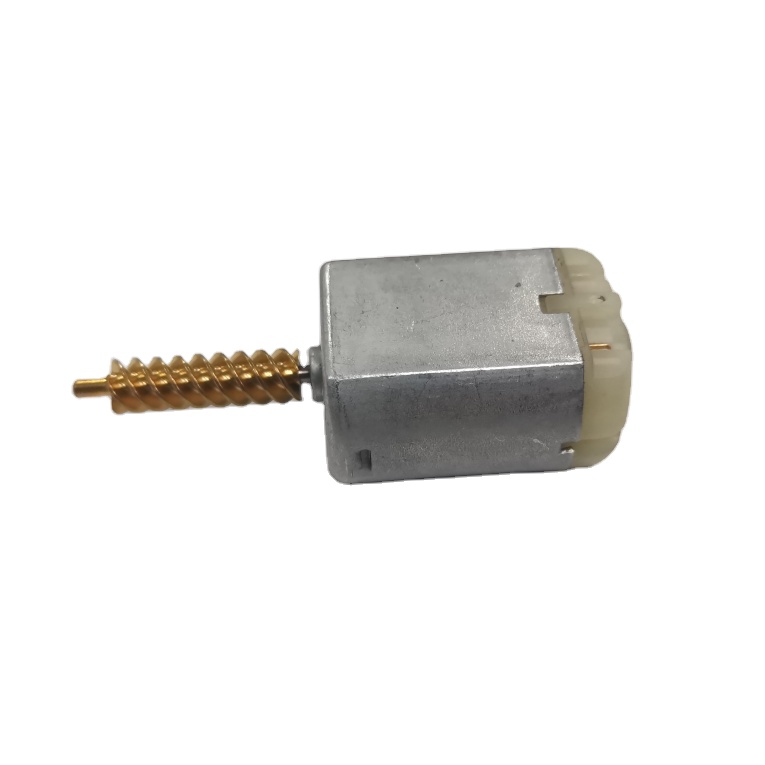

12v dc electric car lock motor dc motor FC-280SC-20150
12V Car DC Motor car lock actuator motor
Application: Door lock Actuator, Automotive Product
12v dc car lock motor
Since established in 2003, commitment has been made to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliances, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
This micro DC motor is primarily designed for automotive products, such as car door lock actuators, as well as scanner devices.
The motor operates on a 12V DC power supply and features a no-load speed of 11,800 RPM.
Yes, the motor comes with ROHS certification, ensuring compliance with environmental safety regulations.
It features a permanent magnet construction with a 2-Pole stator, 3-Slot armature, and reliable carbon brush commutation.
Yes, the rotation of the FC-280SC-20150 motor is fully reversible, making it highly versatile for bidirectional actuator setups.
Standard packaging is 500 pieces per carton, with carton dimensions of 39x29x46 cm. Bulk order delivery is typically completed within 30 days.
