Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
1 / 5
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock

Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock

Send Inquiry

Product Description

Product Description

Quick Details

Place of Origin:Guangdong China (Mainland)
Model Number:FC-280PD-16240
Usage:Car
Certification:ROHS
Type:Micro Motor
Torque:234G.CM at stall
Construction:Permanent Magnet
Commutation:Brush
Protect Feature:Closed
Speed(RPM):8200rpm At No load Speed
Continuous Current(A):0.288A
Output Power:2.3 W
Voltage(V):13V
Efficiency:IE 1
Bearing:Oil-impregnated bearing
End Cap:Plastic End Cap
Stator and Slots:2-Pole stator & 3-Slot armature
Brush Type:Carbon brushes
Bearing Type:Oil-impregnated bearing
Rotation:Reversible
Packaging & Shipping
📦
Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
⏱️
Delivery Detail: Within 30 days
Our Services
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Specifications:

Carbon brush FC-280 12v dc car door lock Motor, fc-280pd-16240 13v dc lock motor for car lock

13v dc motor for car lock

✓1. ROHS Certification
✓2. Permanent Magnet
✓3. Plastic End Cap
✓4. Low noise and long life

Application: Door lock Actuator, Automotive Product

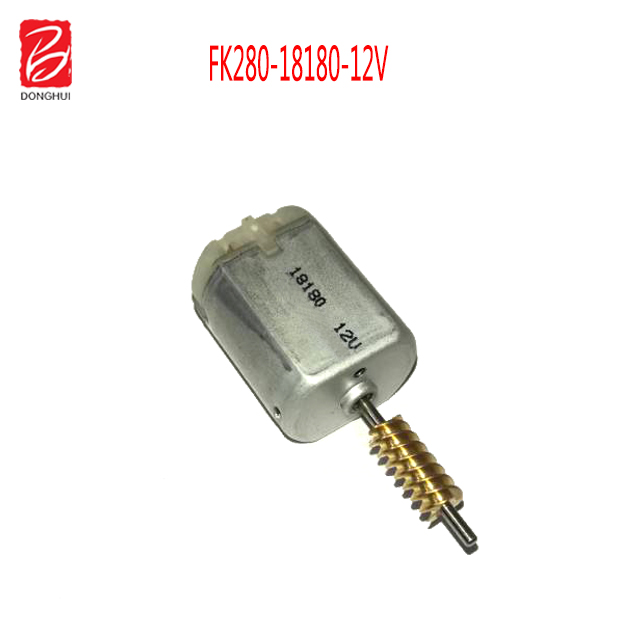

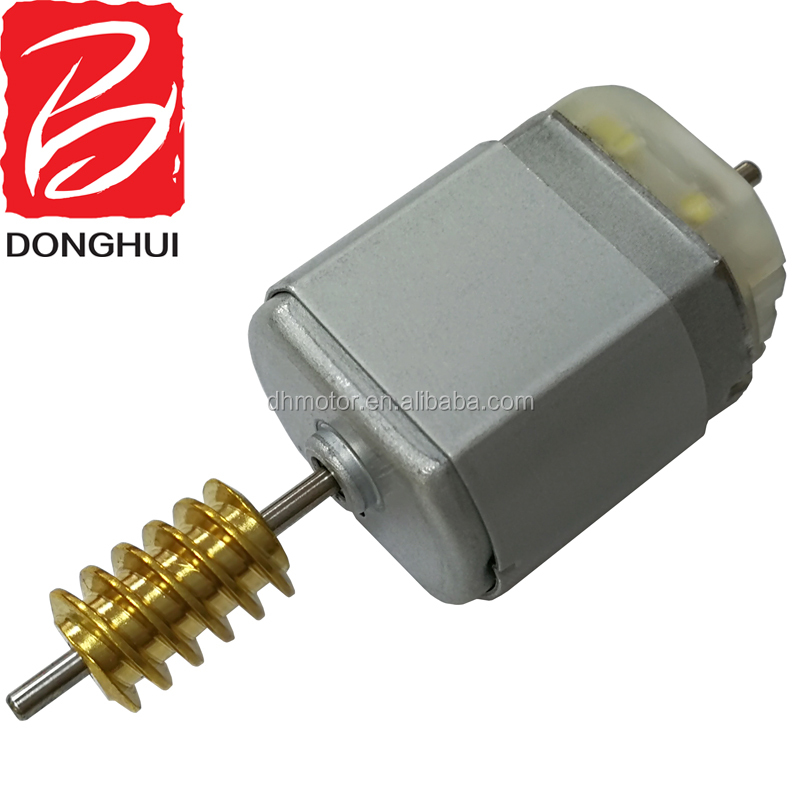

Photo:

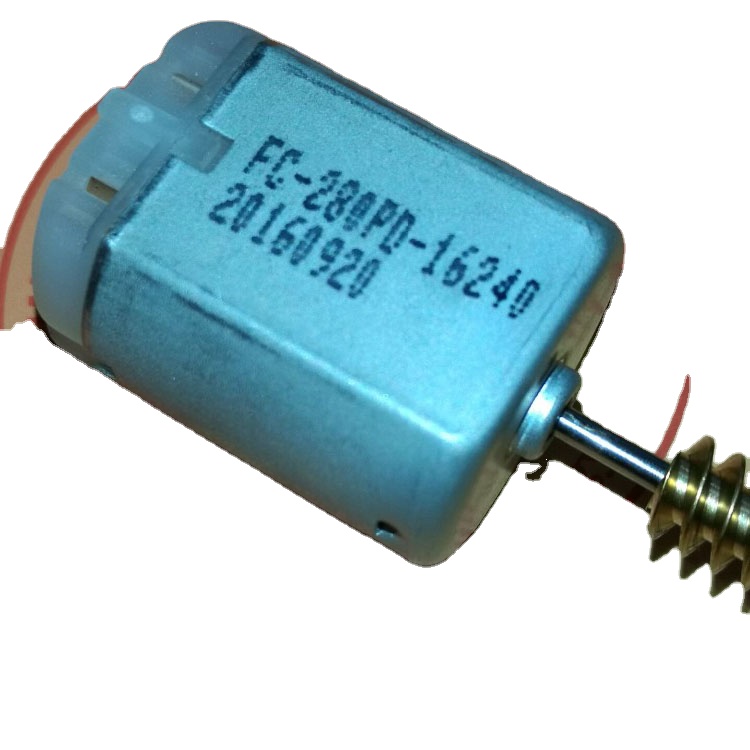

13v dc car door lock motor fc-280pd-16240

Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Packing:
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock

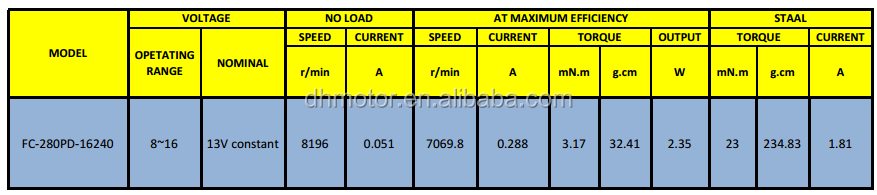

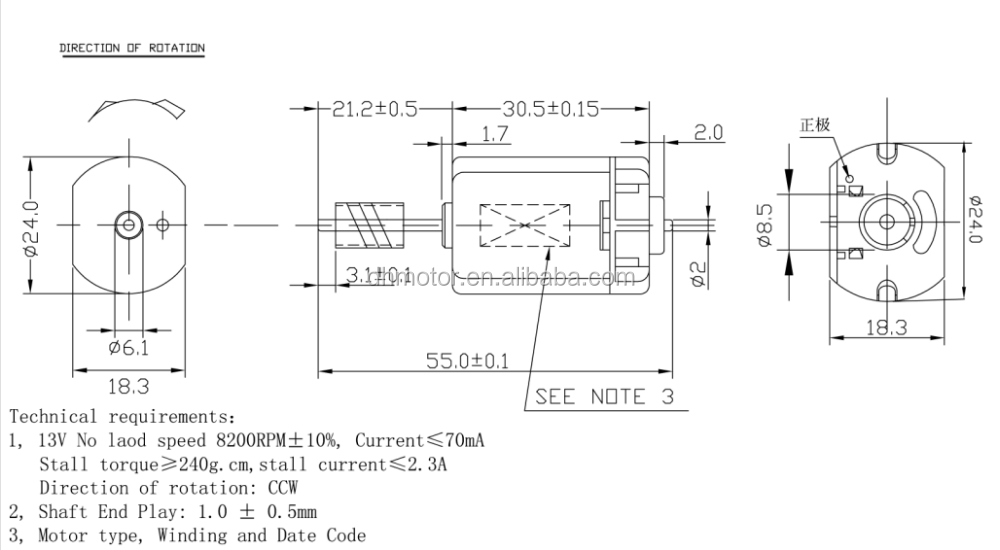

Drawings and specs:
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock
Company Information
Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock Carbon Brush FC-280 12v Dc Car Door Lock Motor, Fc-280pd-16240 13v Dc Lock Motor for Car Lock

Established in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields. Learn More About us:

🔹 1. Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
🔹 2. Products size range: Diameter: 4-100mm
🔹 3. DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
🔹 4. Speed range: 1 RPM-30,000RPM
🔹 5. Stall torque: 1g.cm-30kg.cm
🔹 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What are the primary applications of the FC-280PD-16240 motor?
This micro DC motor is specifically designed for automotive applications, primarily as a door lock actuator and in various other automotive electrical systems.
What is the rated voltage and no-load speed of this motor?
The motor operates on a nominal voltage of 13V DC, reaching an efficient no-load speed of 8200 RPM with a continuous current of 0.288A.
Is this motor certified for global markets?
Yes, this micro DC motor holds ROHS certification, ensuring compliance with environmental protection standards and restriction of hazardous substances.
What is the standard configuration and bearing type?
It features a permanent magnet, 2-Pole stator, 3-Slot armature, carbon brushes, a plastic end cap, and oil-impregnated bearings for reliable operation.
Can this motor rotate in both directions?
Yes, this micro motor features reversible rotation, allowing it to perform clockwise and counterclockwise operations as needed by automotive lock systems.
What are the packaging and delivery details?
Standard shipping consists of 500 units per carton with dimensions of 39x29x46 cm. Production and delivery are completed within 30 days.
