Specifications
FC-280 12v dc motor electric for car
12V car door lock actuator motor fc280
- ROHS Certification
- Permanent Magnet
- Plastic End Cap
- Low noise and long life
Application: Door lock Actuator, Automotive Product
Photo Gallery

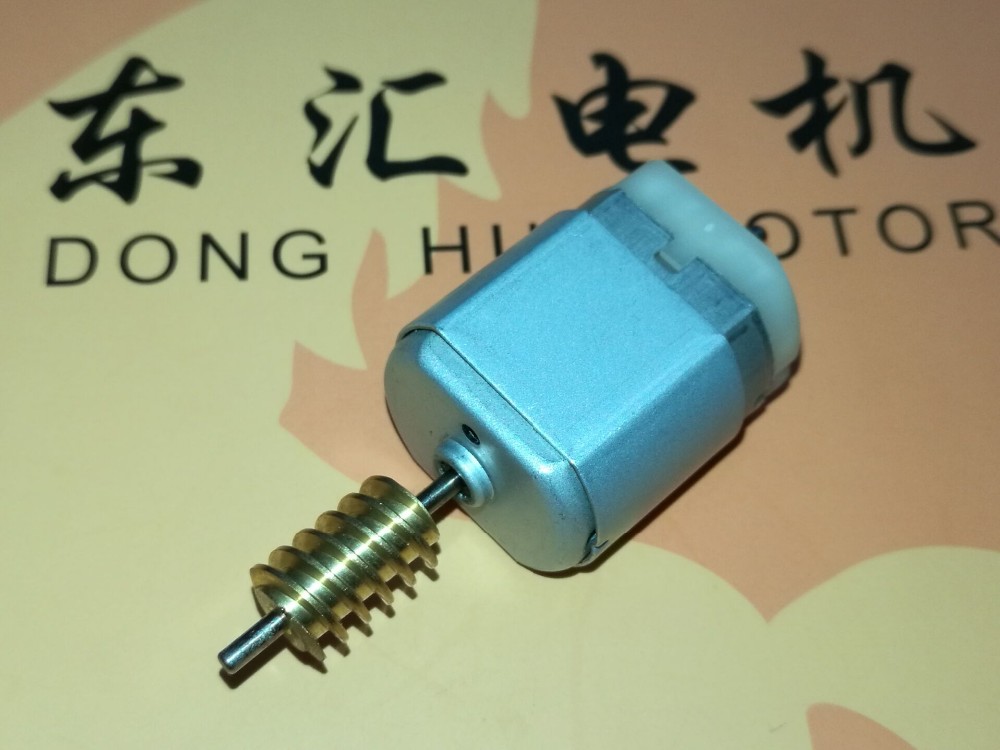

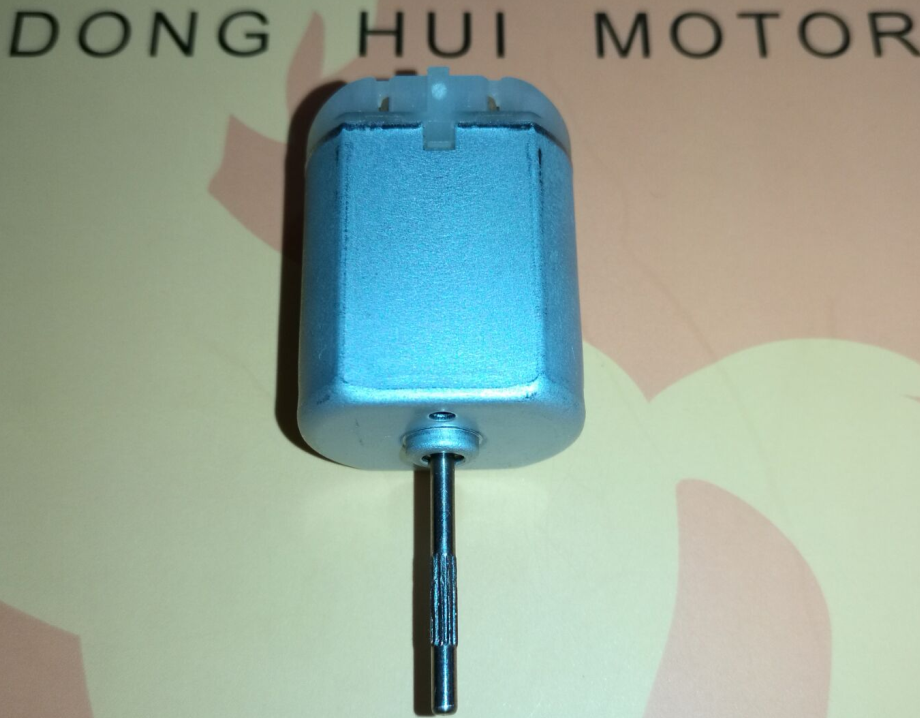

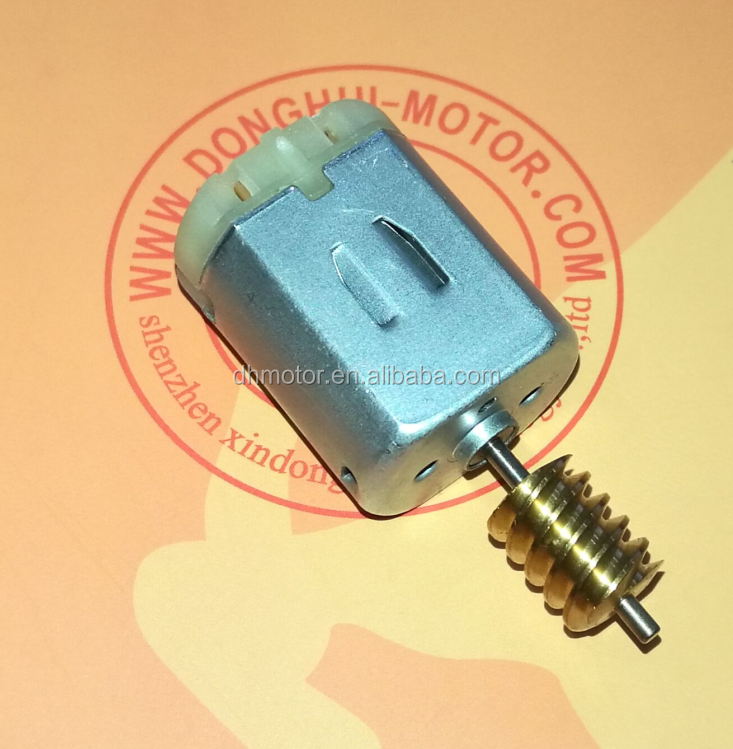

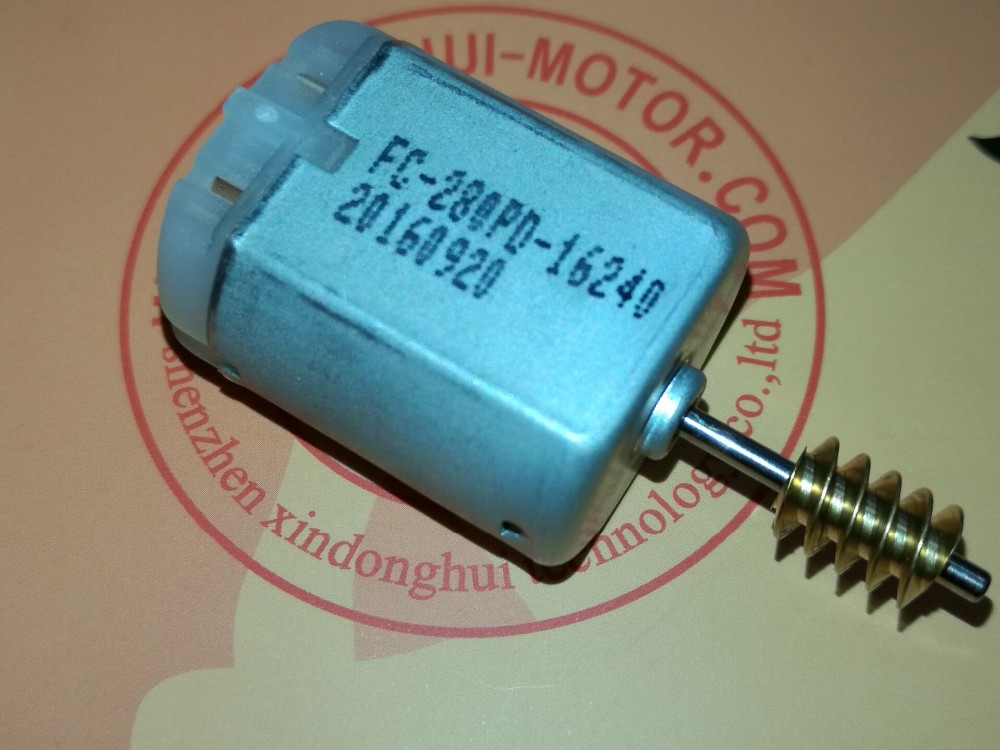

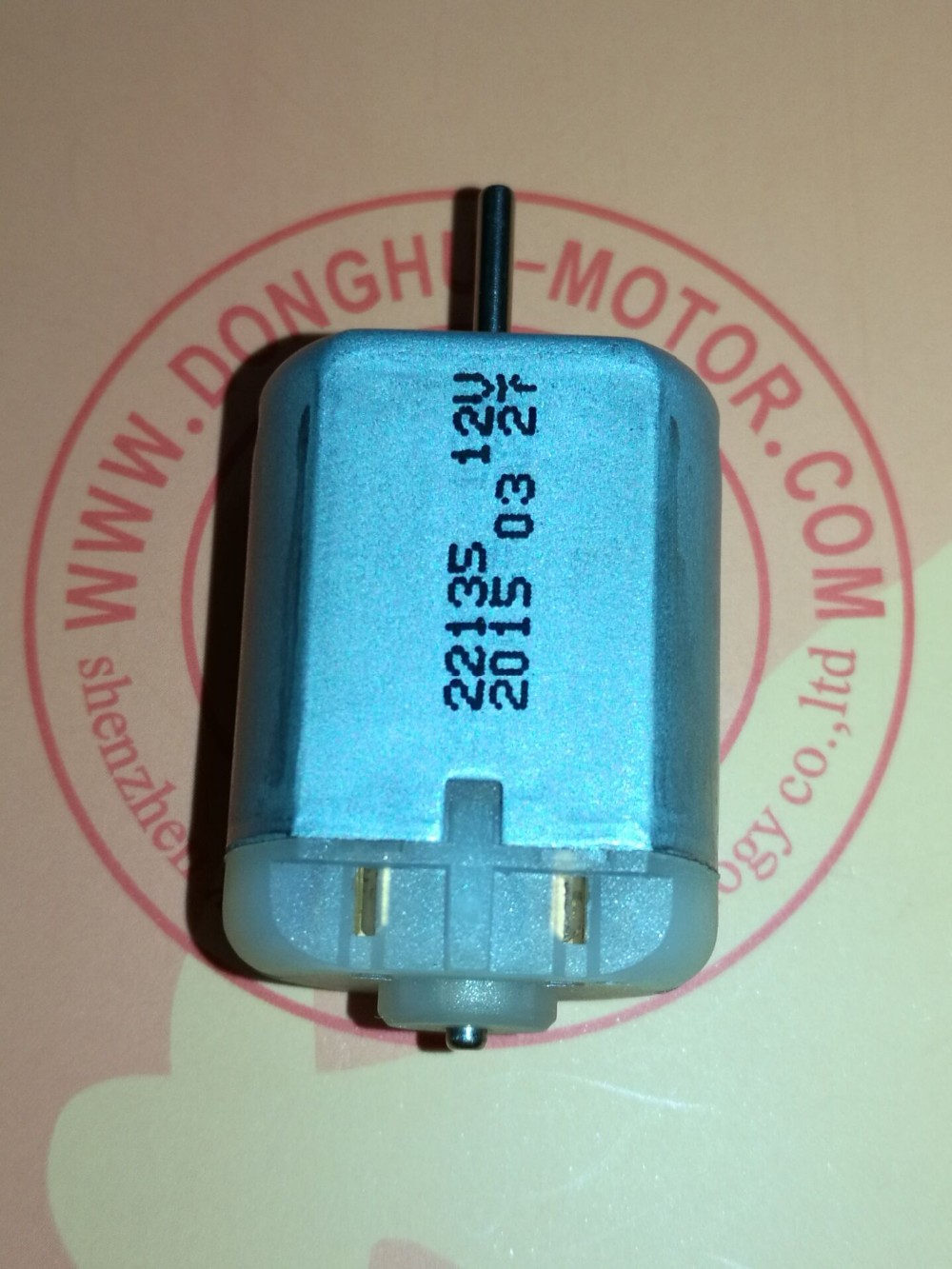

12v dc car door lock motor fc280
Outline Drawing and Basic Parameters
Company Information
Since established in 2003, there has been a commitment to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:
- Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
- Products Size Range: Diameter: 4-100mm
- DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
- Speed Range: 1 RPM - 30,000RPM
- Stall Torque: 1g.cm - 30kg.cm
- Applications: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions (FAQ)
What are the primary applications for the FC-280SC-20150 motor?
This micro DC motor is widely utilized in automotive products, specifically as a car door lock actuator motor, and in scanning equipment.
What are the key technical specifications of this micro motor?
It operates at a voltage of 12V with an output power of 4.5W. It has a no-load speed of 11,800 RPM and features a stall torque of 335 g.cm.
Does the motor support reversible rotation?
Yes, the FC-280SC-20150 micro DC motor is designed with reversible rotation, allowing it to turn in both directions.
What materials and components are used in its construction?
The motor is built with permanent magnet construction, featuring a 2-pole stator, a 3-slot armature, carbon brushes, and a protective plastic end cap.
What packaging options and delivery timelines are standard?
Standard packaging is 500 units per carton (carton dimension: 39x29x46 cm). Delivery is typically processed within 30 days.
Is this micro motor certified for environmental standards?
Yes, the motor is fully certified under ROHS regulations, ensuring standard compliance and environmentally friendly materials.
