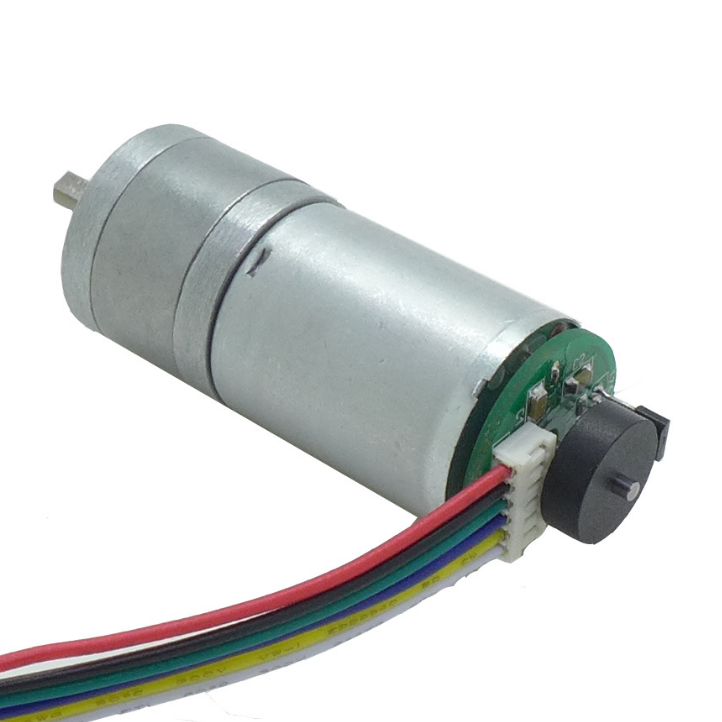

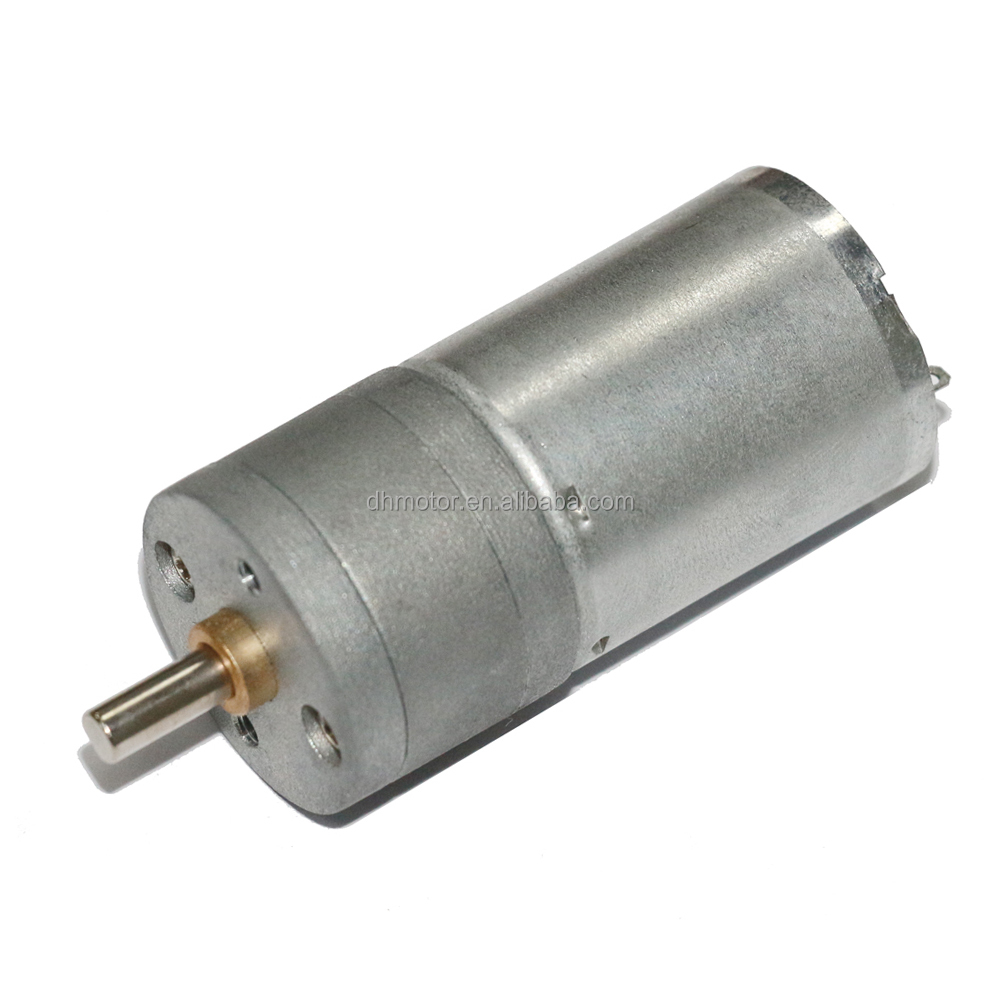

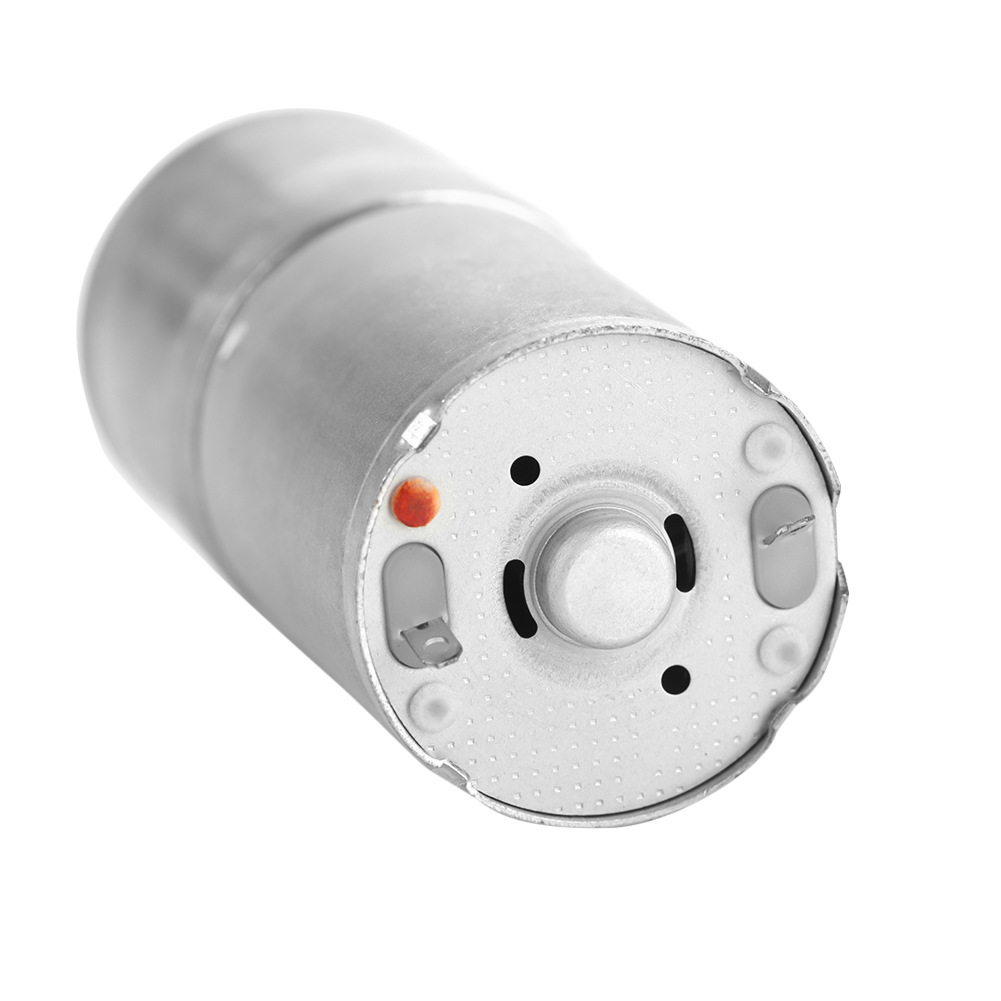

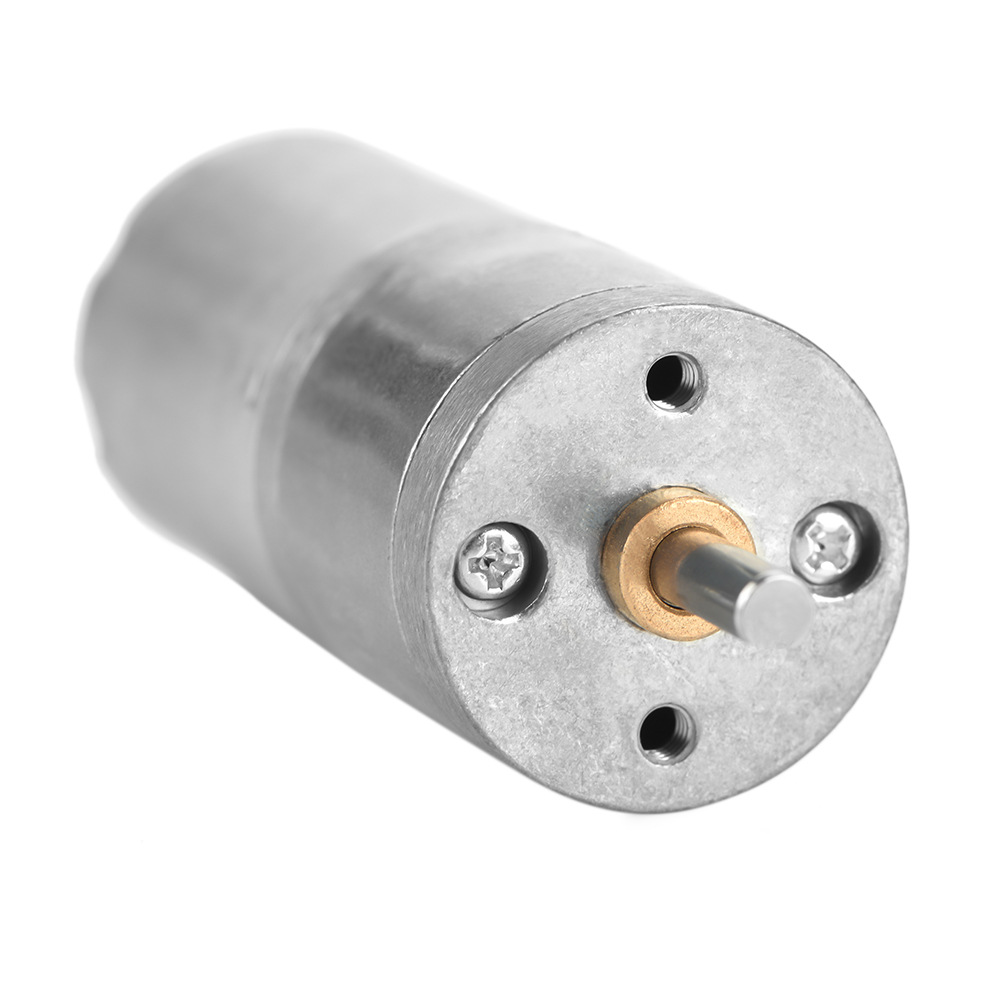

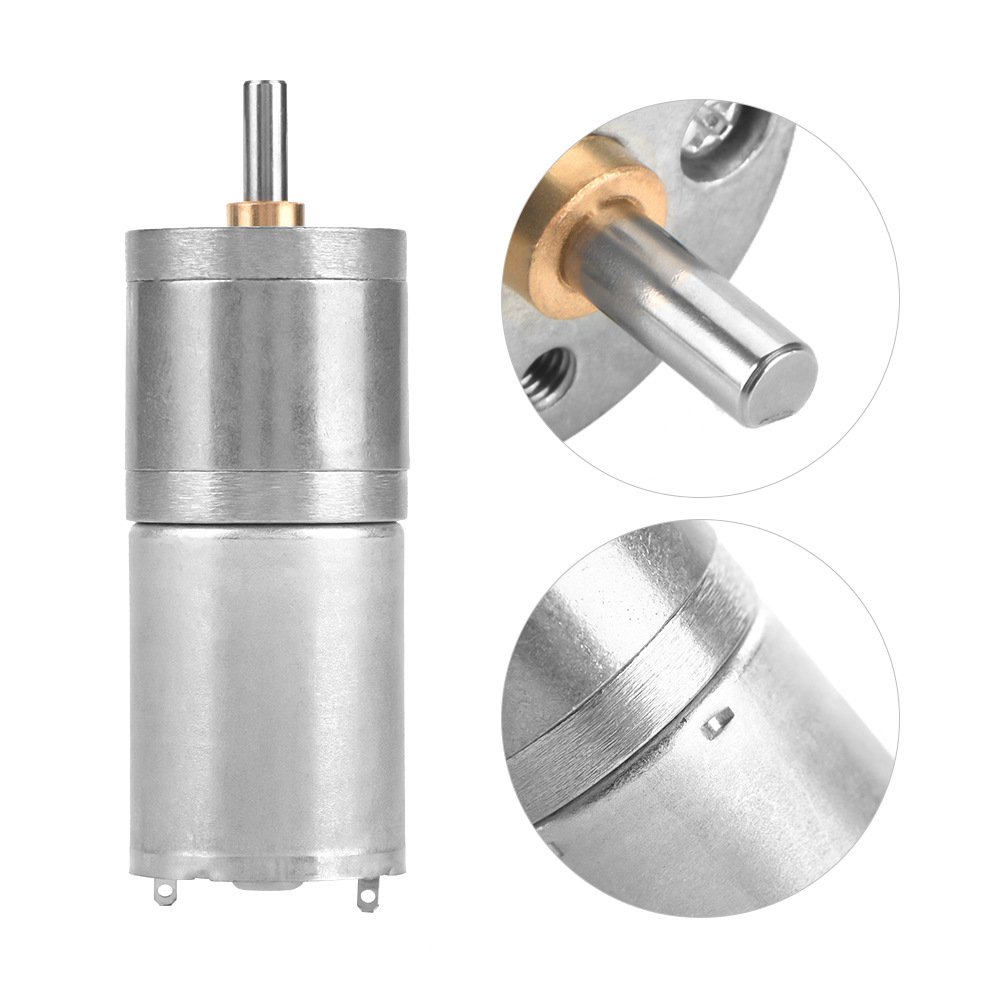

High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
1 / 5
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS

High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS

Send Inquiry

Product Description

Product Description
Place of Origin
Guangdong China
Model Number
DGA25-370
Usage
Home Appliance
Certification
ROHS
Type
Gear Motor
Torque
2 kg.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Drip-proof
Speed(RPM)
19 rpm
Continuous Current(A)
0.147A
Output Power
1.1W
Voltage(V)
12V
Efficiency
IE 1
NO LOAD SPEED
22 rpm
Packaging & Shipping
Packaging Details
240PCS/CTN, CARTON DIMENSION: 415*315*210 MM
Delivery Detail
Within 25 days
Our Services

high torque 25mm 12v dc motor gear motor, 12v 60 rpm 100 rpm dc gear motor 100: 1 gear ratio

High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
Specifications:
12v high torque dc motor gear motor
  • 3V 5V 6V 12V 24V dc motor with encoder
  • RF370 motor + 25mm dc spur gearbox
  • 4mm D shape output shaft
  • Reduction Ratio can be customized
Typical Applications
Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment.
Reduction Ratio Options
1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, 1/478
Characters:
  • 1. Size: 25*54 mm, just 54 mm length mini motor
  • 2. Voltage: 6V 12V 24V
  • 3. Speed: 5-410 RPM
  • 4. Torque: 0.05-5kg.cm
  • 5. Long Life time
  • 6. Low noise, low current no spark
  • 7. Motor with encoder, 16 pulse signal
  • 8. Reduction Ratio: 15-1051
  • 9. Can be equipped with encoder
  • 10. Samples can be sent first. The MOQ is 100 pieces and the delivery time is 20-25 days.
Photos:

high torque 25mm 12v dc motor gear motor, 12v 60 rpm 100 rpm dc gear motor 100: 1 gear ratio

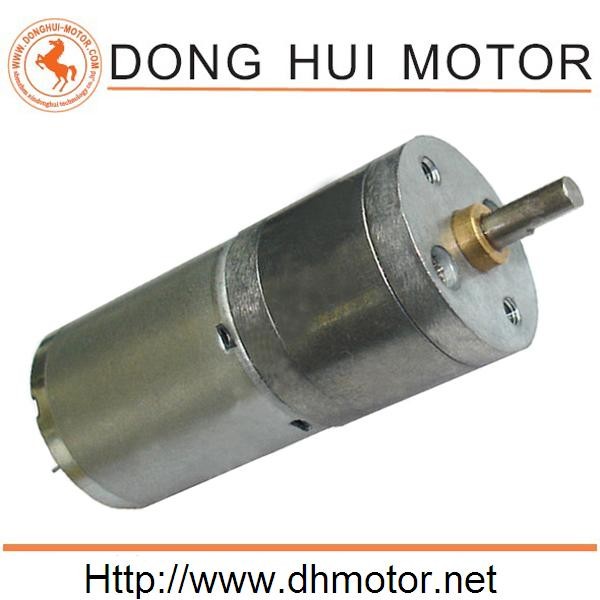

High Torque 25mm 12V DC Motor Product Image 1

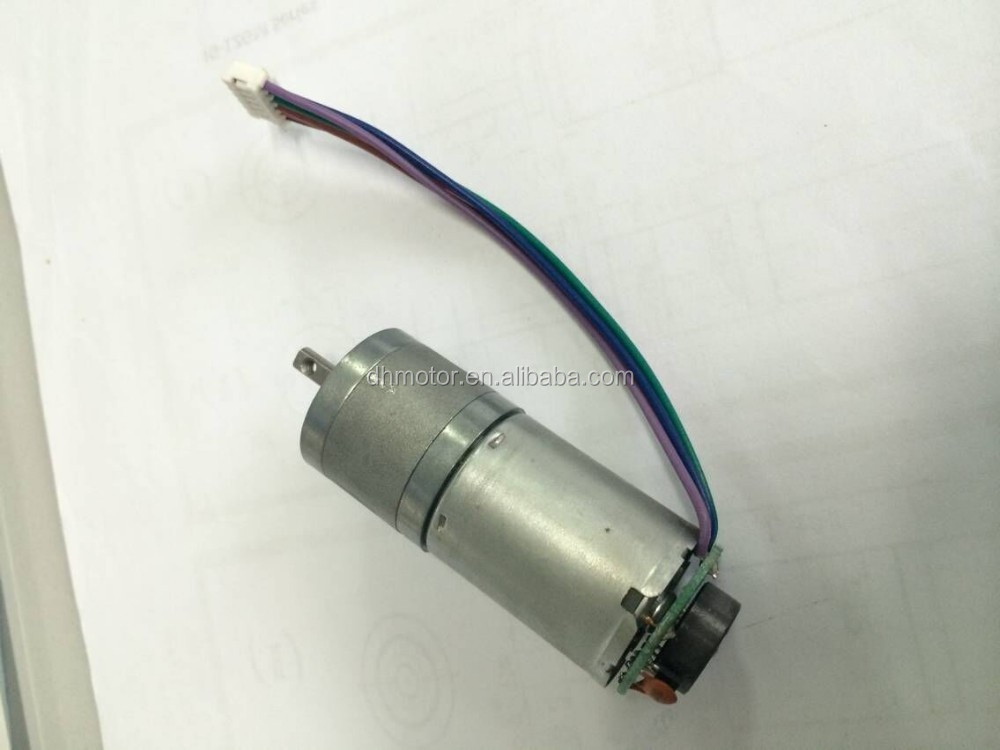

High Torque 25mm 12V DC Motor Product Image 2
High Torque 25mm 12V DC Motor Technical Detail Drawing
Capabilities & Product Range
Production Capabilities Overview
Production Process Image
Quality Control Process
  • 1. Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • 2. Products size range: Diameter: 4-100mm
  • 3. DC Voltage range: 1.5V -42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • 4. Speed range: 1 RPM-30,000RPM
  • 5. Stall torque: 1g.cm-30kg.cm
  • 6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What is the default operating voltage and speed of the DGA25-370 gear motor?
The default operating voltage is 12V DC, which provides a rated speed of 19 rpm (no-load speed of 22 rpm). It is also customizable to other parameters.
Can the reduction ratio of this motor be customized?
Yes. The reduction ratio can be customized to suit your requirements. Standard options include 1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, and 1/478.
What are the typical applications for this micro DC gear motor?
This motor is ideal for home appliances, safe boxes, storage boxes, perfume sprayers, ad equipment, sanitary equipment, automatic window curtains, electronic game machines, robots, measuring instruments, and audio equipment.
Is it possible to get this motor with an integrated encoder?
Yes, this 25mm gear motor can be equipped with an encoder that outputs a 16-pulse signal for precise feedback and control.
What is the minimum order quantity (MOQ) and production lead time?
The MOQ for production is 100 pieces. Once the order is confirmed, the standard delivery time is 20 to 25 days. Samples can be sent for testing beforehand.
What packaging layout is used for shipping these motors?
The standard bulk packaging is 240 pieces per carton, with external carton dimensions measuring 415 * 315 * 210 mm.
