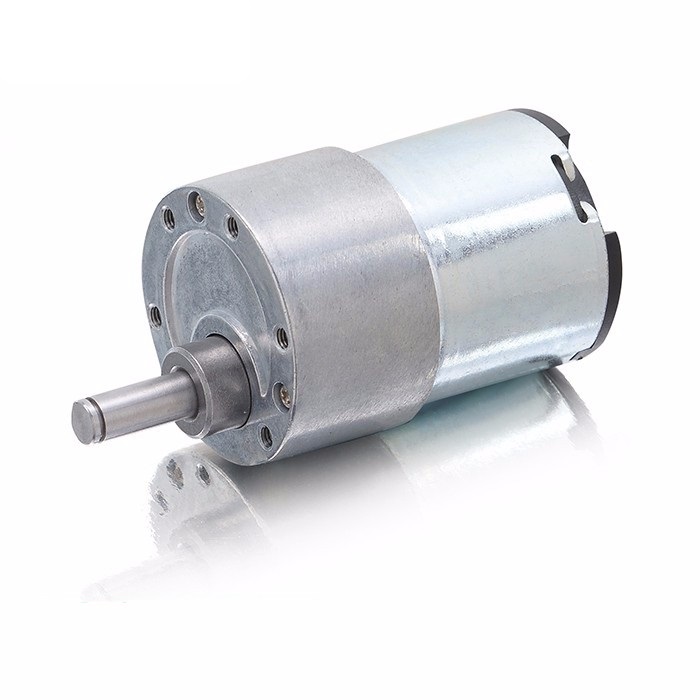

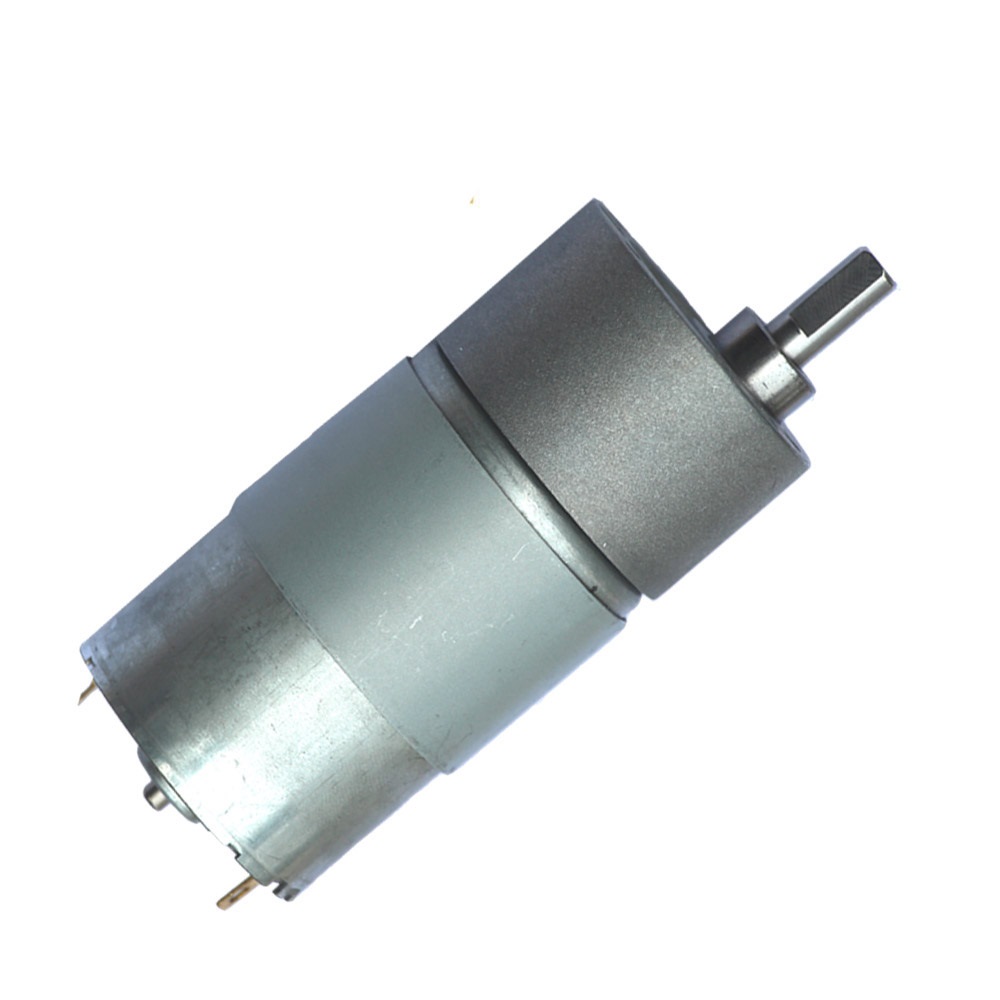

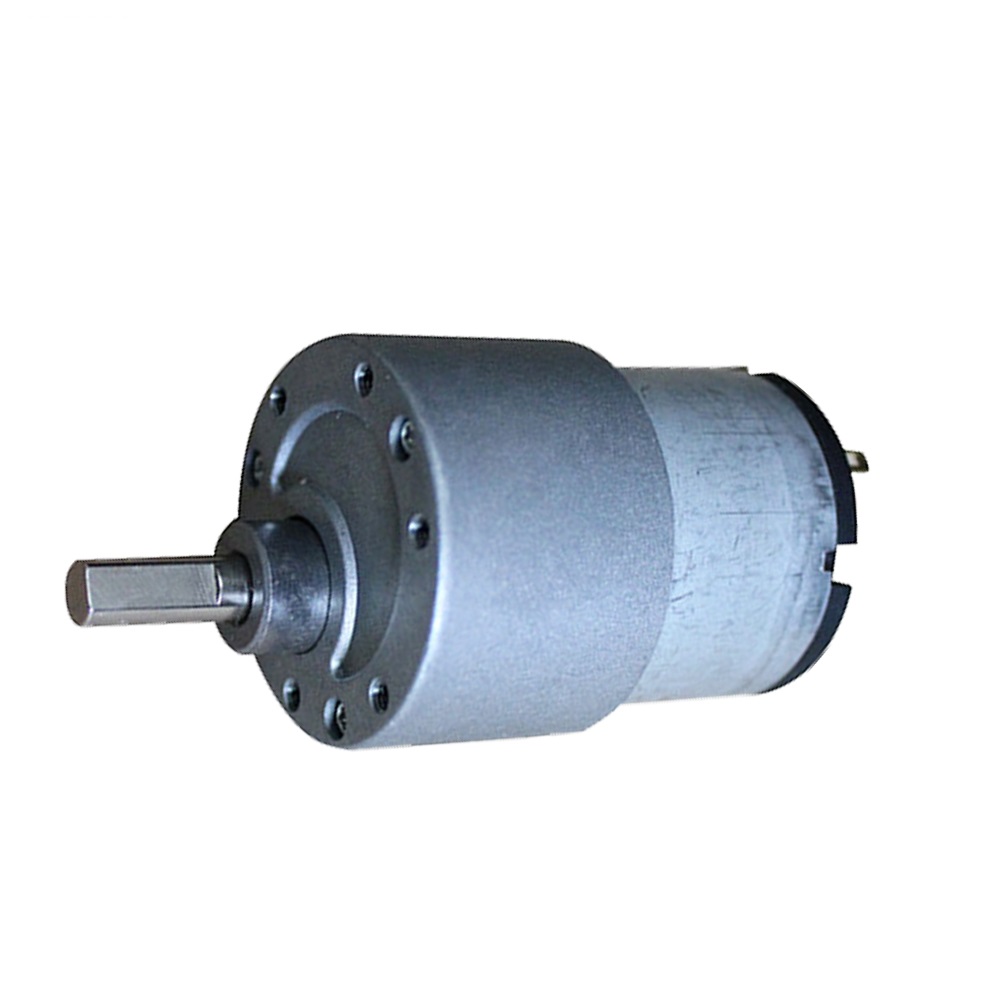

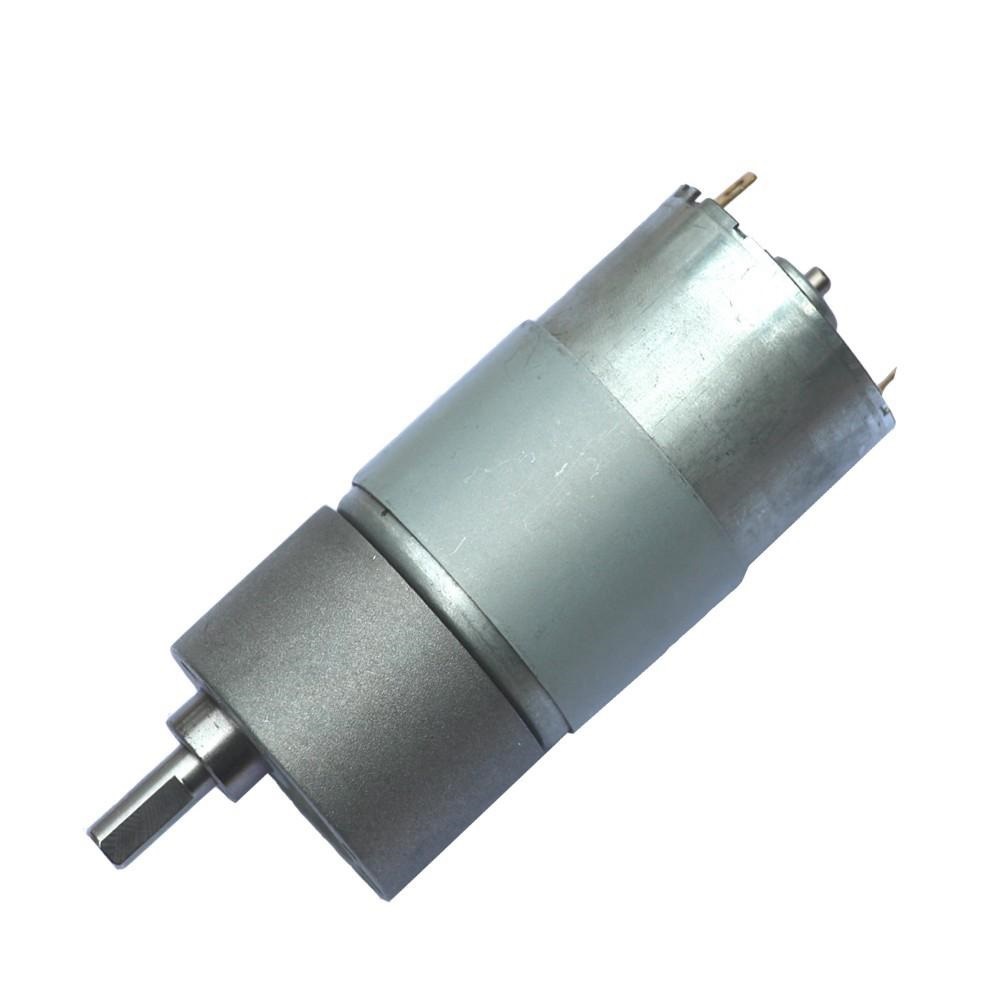

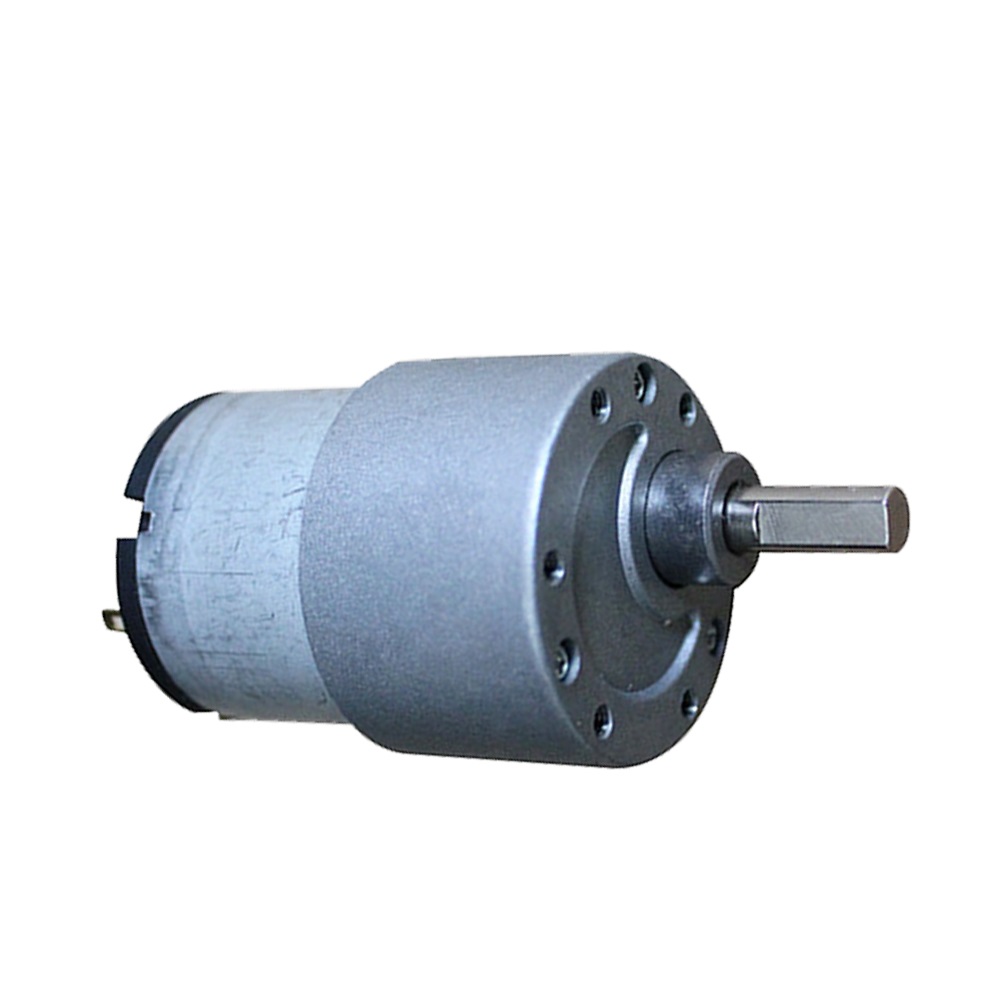

GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
1 / 5
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor
GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor

GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor

Send Inquiry

Product Description

Specification
Item 37mm DC Gear Motor
Size Diameter 37mm, Length: Customized
Voltage 6V-24V
Unload Speed 10-1000rpm
Rated Torque ≤6kg.cm
Max Torque ≤18g.cm
Wattage ≤8watt
Application Robot, Lock, toys, electric power tool
Product Description
Motor's voltage, speed, ratio, torque, screw length, shaft length can be customized

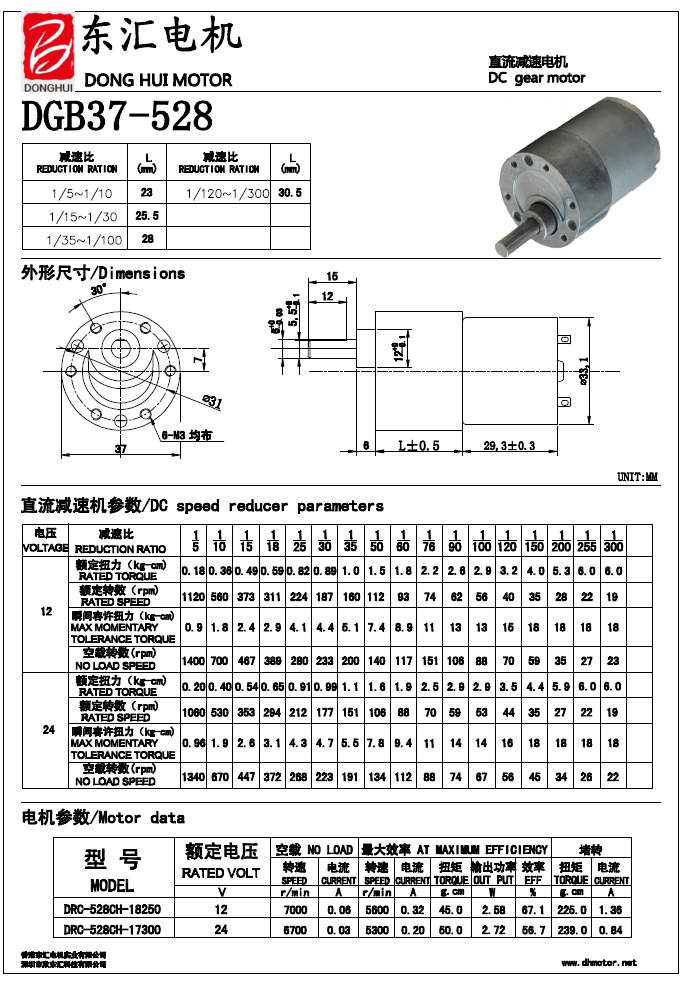

DC Gear Motor Specification

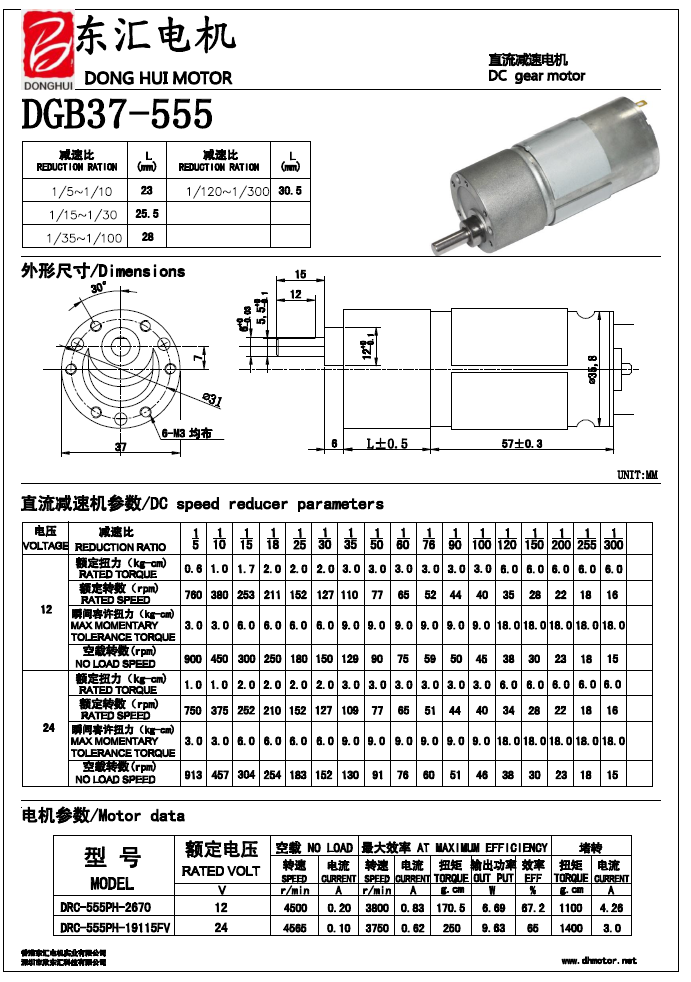

DC Gear Motor Dimensions
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

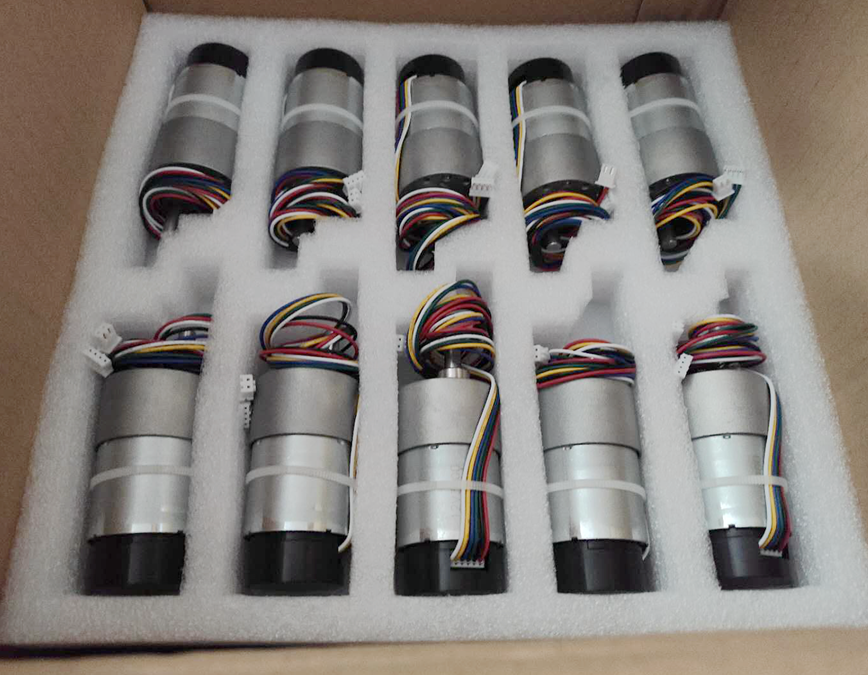

Packaging Process
Secured Packing
Delivery Preparation
Shipping Logistics
Company Profile

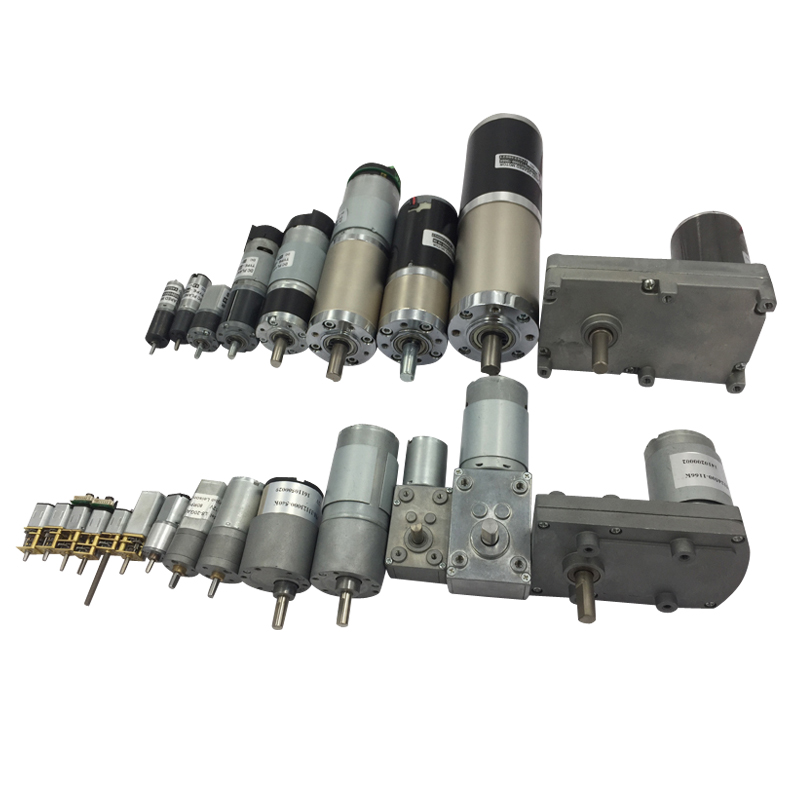

Professional micro motor/engine manufacturer for 10 years.
  • Brush Dc Motor: Φ6mm—Φ60mm
  • Brushless Dc Motor: Φ12mm-Φ42mm Coreless
  • Brush/Brushless DC Motor: Φ4mm—Φ45mm
  • Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
  • Stepper Dc Motor: Φ6mm—Φ24mm
  • Vibration Dc Motor: Φ4mm—Φ45mm
  • Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
  • Speed Range: 0.1-80,000RPM
  • Output Torque: 0.01-500Kg.cm
  • Shaft Length: 0.1-150mm
  • Gearbox Ratio: 1:4---1:5000
Manufacturing Workshop
Production Line
Quality Testing
Warehouse Inventory
FAQ
What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
What kind of data do i need to provide if i want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
What if i don't know the above data?
Please contact our salesman, tell us your requirement, we will recommend the best fit model.
Technical Support
Please feel free contact us talk any motor question!
