Home > dc gear motor > 36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555

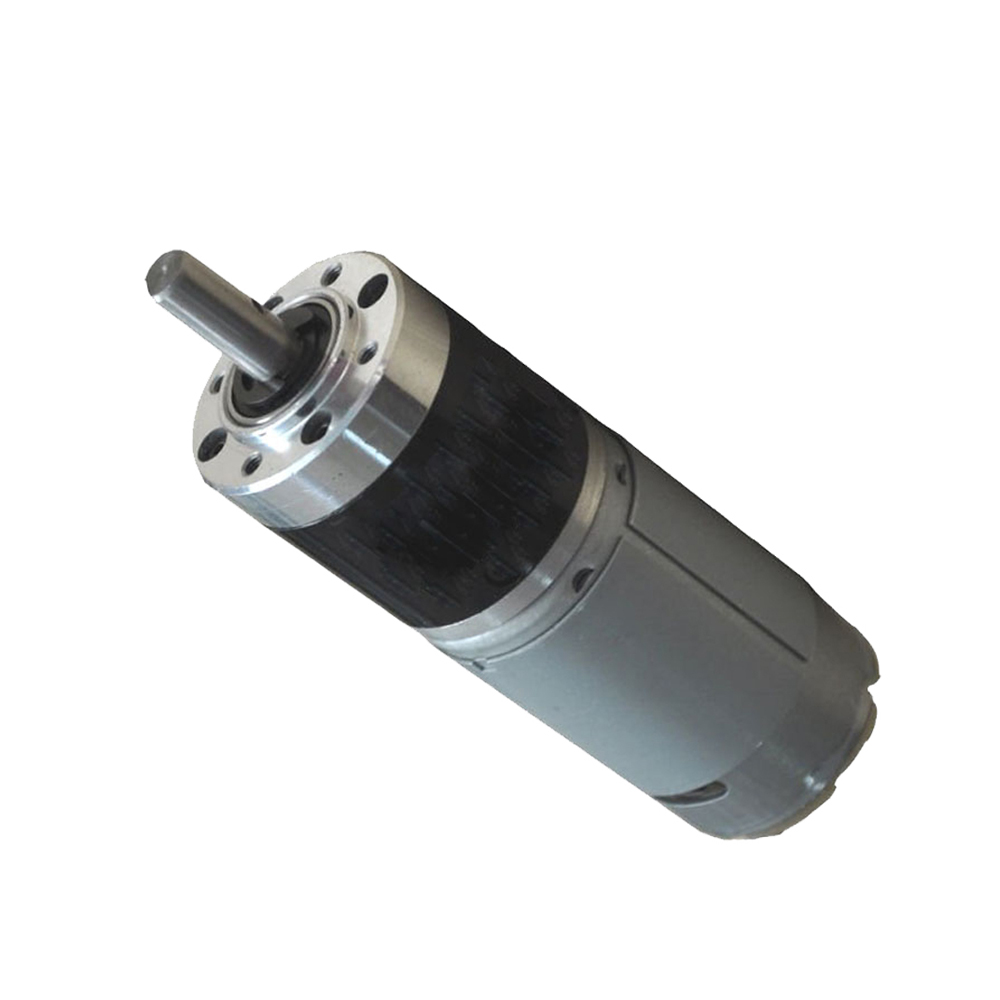

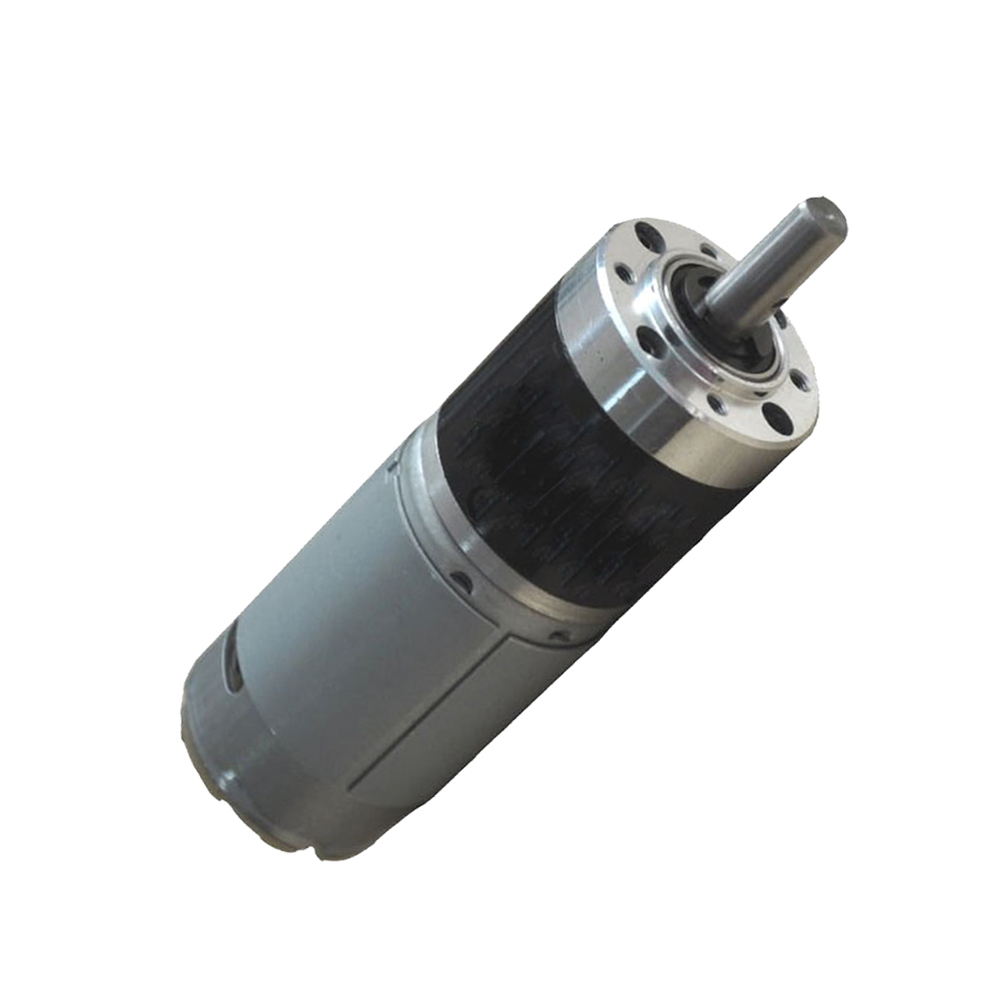

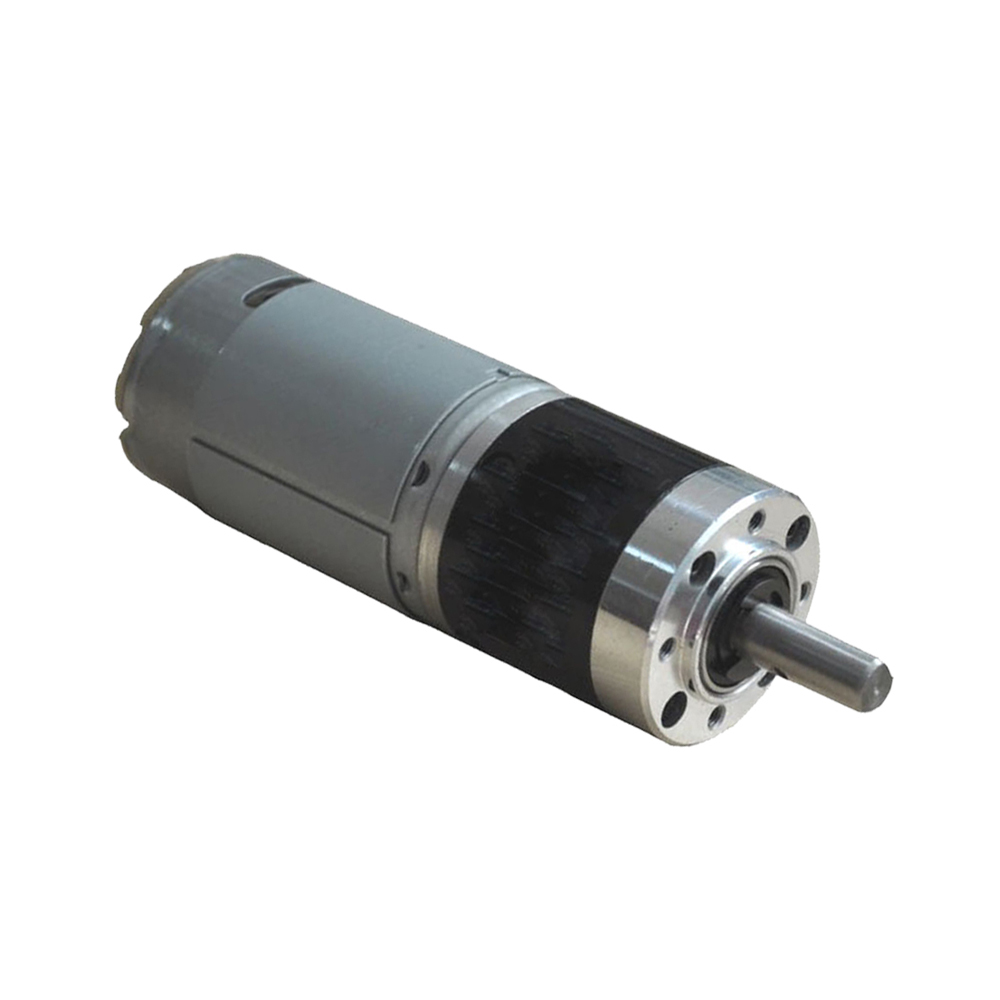

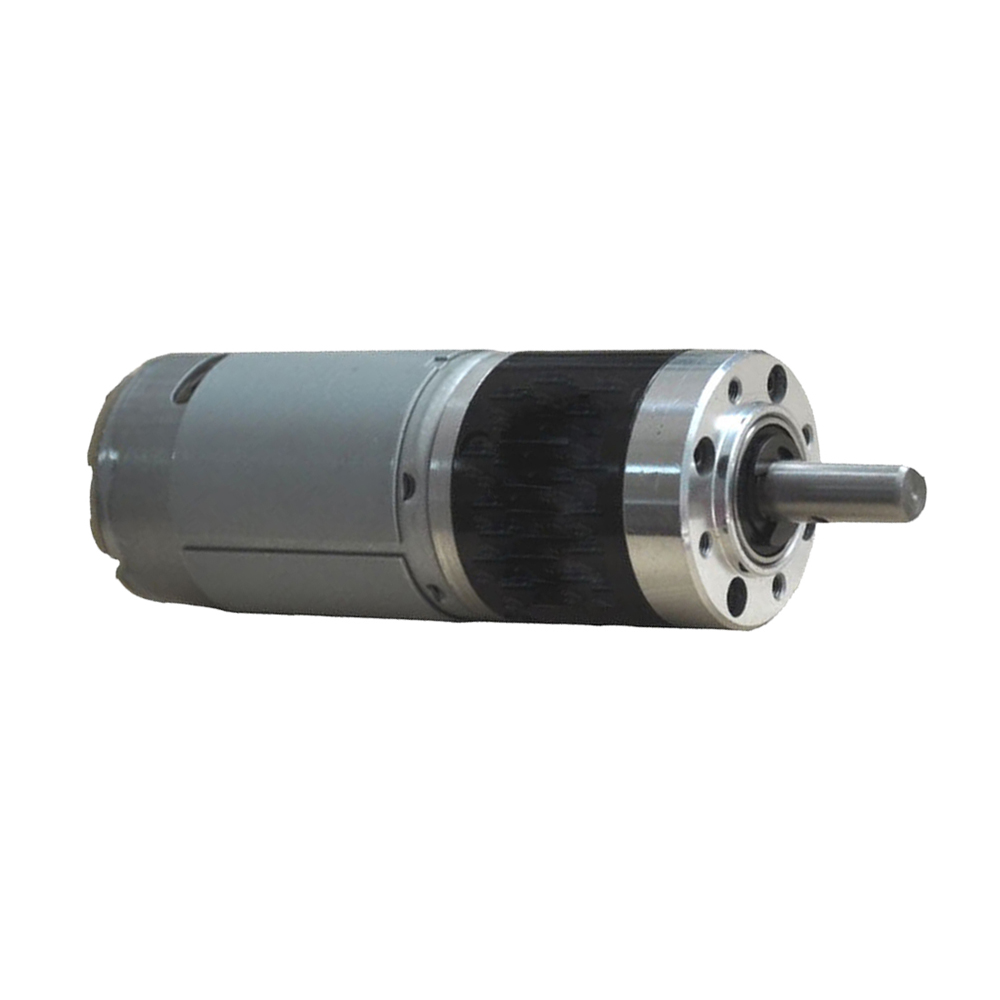

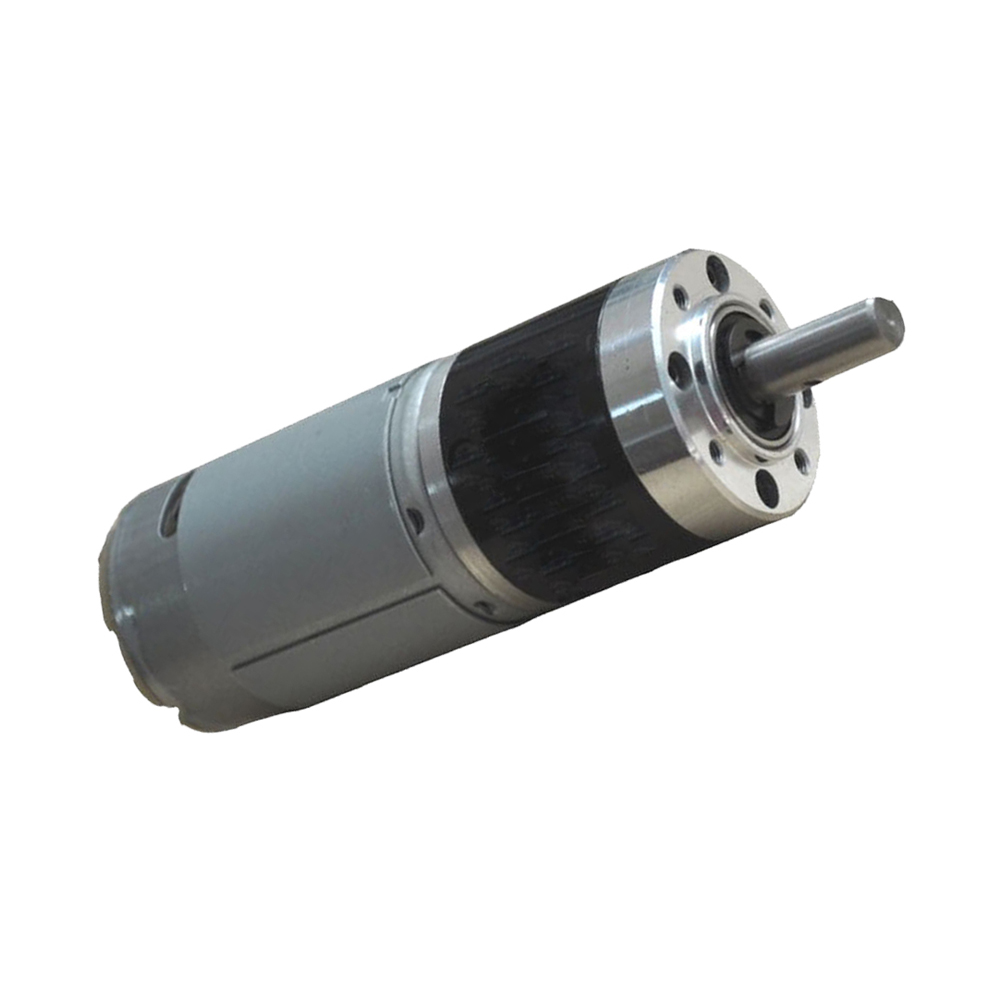

36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
1 / 5
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555
36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555

36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555

Send Inquiry

Product Description

12 Volt 150W High Torque DC Gear Motor

  • ✓
    Rated Voltage: DC12V
  • ✓
    Speed No load: 30-50RPM
  • ✓
    Torque: 20kg.cm Torque At Max Efficiency
  • ✓
    Motor Type: Precious Metal-brush motors
  • ✓
    Dimensions: Diameter 36mm, length 87mm, shaft 8.0mm
  • ✓
    Weight: 500g Approx
  • ✓
    Output Power: 200W
  • ✓
    Application: Robot, Home Appliance, Door Lock etc
  • ✓
    Customizable: Adjust the performance freely (voltage, speed, torque, etc.)

Planetary Gearbox Specifications

Model Planetary Gearbox Details
Reduction Ratio 5/14/19/27/51/100/140/188/264/369/516/721
Gearbox Length 26.4 - 52.5mm
Rated Torque 3 - 30kg

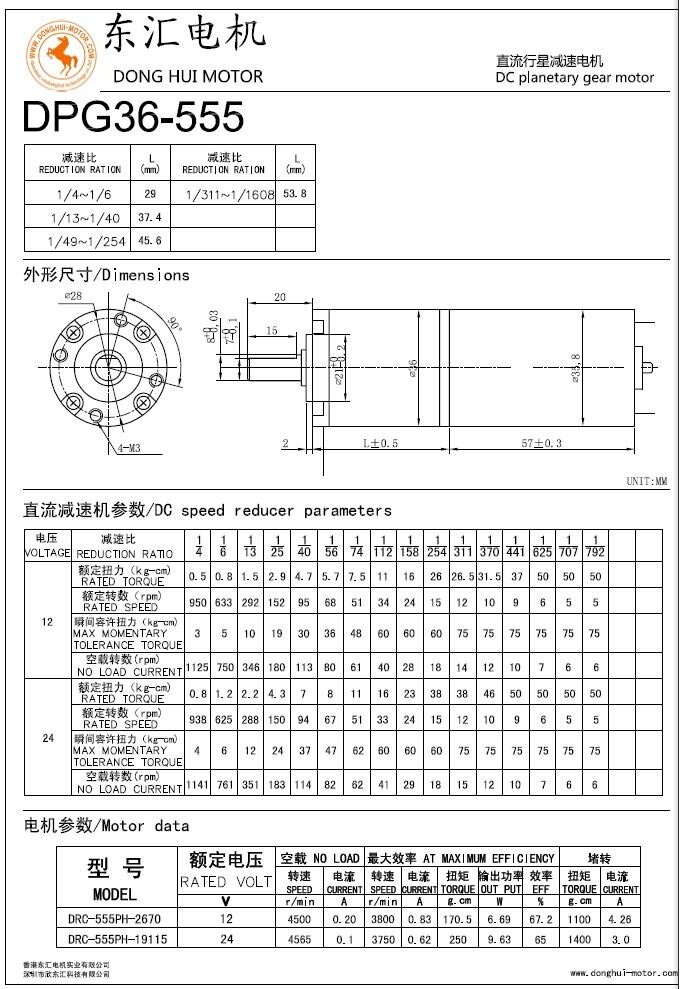

Product Dimensions & Drawings

12V High Torque DC Gear Motor Specifications

Related Products

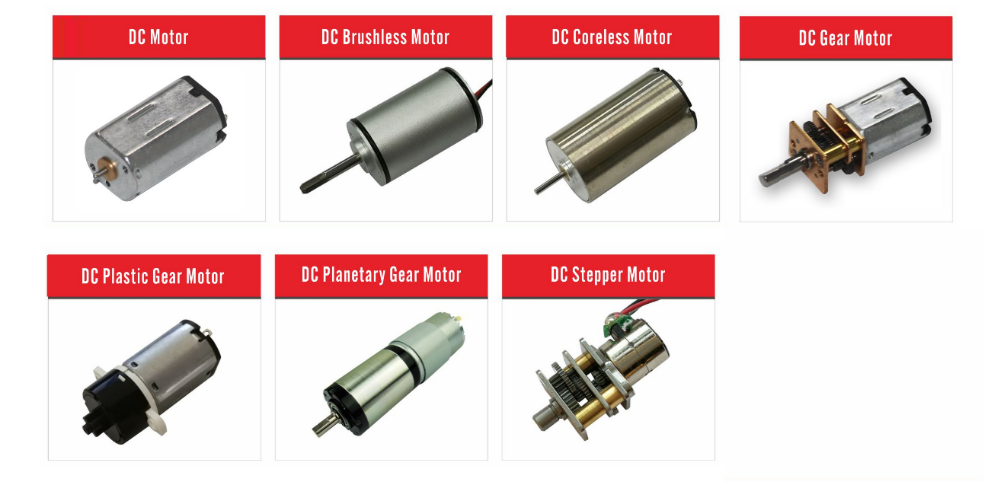

Micro DC Gear Motor Variant 1

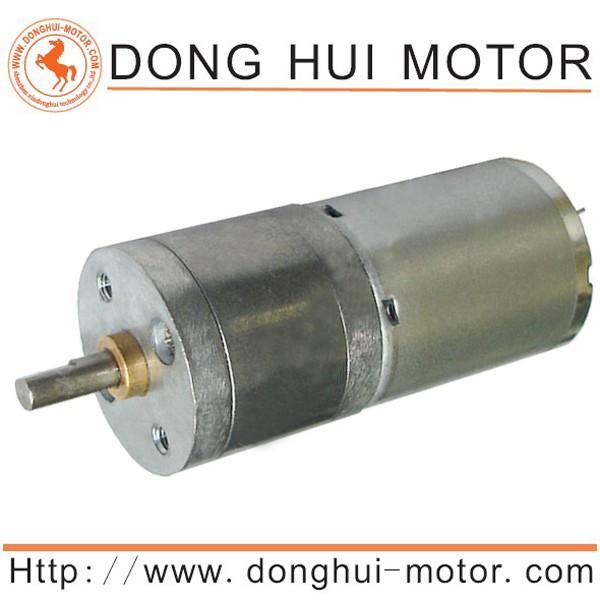

Micro DC Gear Motor Variant 2

Frequently Asked Questions

Q1 What's your main products?
We offer Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q2 What's the main usage of the micro dc gear motor?
Our motor is widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipments, payment equipments, vending machines, power door lock, electric door lock.
Q3 Do you accept customize?
Sure, as we have a strong design team, any customization requirements will get our technical solution.
Q4 What kind of data do I need to provide if I want to order?
Please kindly provide us with your required voltage, speed, torque and overall dimension constraints.
Q5 What if I don't know the parameters?
Please contact our customer support team to assist with your requirements, and we will guide you through the selection process step-by-step.
